Specifications
Brand Name :
FMD/OEM/ODM
Model Number :
FMD-503
Certification :
CE,Rohs
Place of Origin :
Shenzhen,China
MOQ :
1PC
Price :
FOB Shenzhen USD negotiable
Payment Terms :
TT
Supply Ability :
1000pcs/month
Delivery Time :
15 working days average
Packaging Details :
2pcs/carton
Currency :
USD EUR GBP any currencies
Standard :
Heavy duty
skype :
futuremoneydetector
functions :
counting and value count
Description

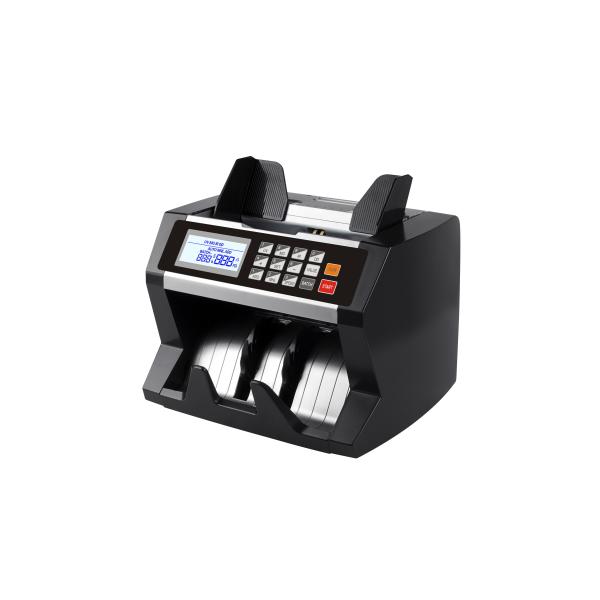

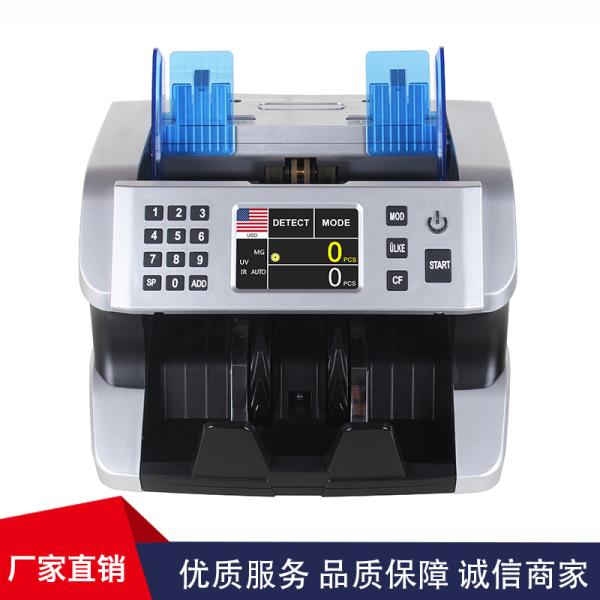

FRONT LOADING COUNTING MACHINE FMD-503 with UV+MG DETECTION HIGH SPEED COUNTING MACHINE

Features:

Counterfeit Detecting Function <UV, MG, IR>:
UV: fluorescent detection: The sensitivity of which can be adjusted by using the buttons in the panel;
MG: magnetic detection. The sensitivity of which can be adjusted by using the buttons in the panel, it detecting fake money by UVMG functions. Auto start counting mode: Put banknotes on hopper and then machine will began counting automatically. Manual start counting mode: Put banknotes on hopper, and only after pressing the RESTART button can the machine begin to work. Front-loading: The front loading function makes the hopper capacity: hopper capacity: new bill-500pcs, old bill-300pcs. Stacker receiving capacity: 200pcs. Addition function: Under this mode the new counted quantity will be added to the previous counted quantity. Batch function: Preset the counting number you need, machine will be stop when the preset counting number is reached. And machine will work again when the banknotes are taken off. Chained note detection<two sheets>: When detects chained note, the machine will stop and emit beeping sound. The sensitivity of which can be adjusted by using the buttons in the panel. Size detection: Regarding the first banknote as the standard, the smaller note in width (2mm difference) can be detected. The sensitivity of which can be adjusted by using the buttons in the panel. Double-note <paper thickness-notes stuck together> detection: Under this function, the double-note will be taken out. The sensitivity of which can be adjusted by using the buttons in the panel. Half-note detection: When detects half-note, the machine will stop and emit beeping sound. Customer display: Included.

PARAMETER:

Counting speed: 800pcs/min, 1200pcs/min, 1600pcs/min, 2000pcs/min

Banknote size: 110 x 50mm - 190 x 90mm

Counting number display: 7 digits

Batch number display: 3 digits

Hopper capacity: 800pcs

Stacker capacity: 200pcs

Power supply: AC110V,60Hz / AC220V, 50Hz

Power consumption: 75W

Dimension: 270mm x 25 mm x 230mm

Net Weight: 7.5kg

Size of Inner Package: 370mm x 320mm x 293mm<1pcs>

Gross Weight of Inner Package: 8kgs

Size of Outer Package: 670mm x 385mm x 310mm<2pcs>

Gross Weight of Outer Package: 18kgs
