USA Mexico 1830 ~ 201036 M3/H industrial air extractor

Specifications

Brand Name :

Model Number :

industrial axial ventilation fan series

Certification :

Place of Origin :

China

MOQ :

1pc

Price :

50-1000

Payment Terms :

T/T, L/C, Western Union, MoneyGram

Supply Ability :

1500pcs/month

Packaging Details :

exported MDF box or according to client's requirement

Type :

industrial axial ventilation fan

Blade Material :

aluminum alloy

Noise :

less than 82dB

wind speed :

4-12 m/s

air volume :

4256 ~ 201036 m3/h

power :

0.37 ~ 45KW

voltage :

220V/380V/415V/440V/460V

Description

USA Mexico 1830 ~ 201036 M3/H industrial air extractor

Specification

Bidirectional ventilation

Adjustable blade angle

Large air volume

High air pressure

Low noise

Low power consumption

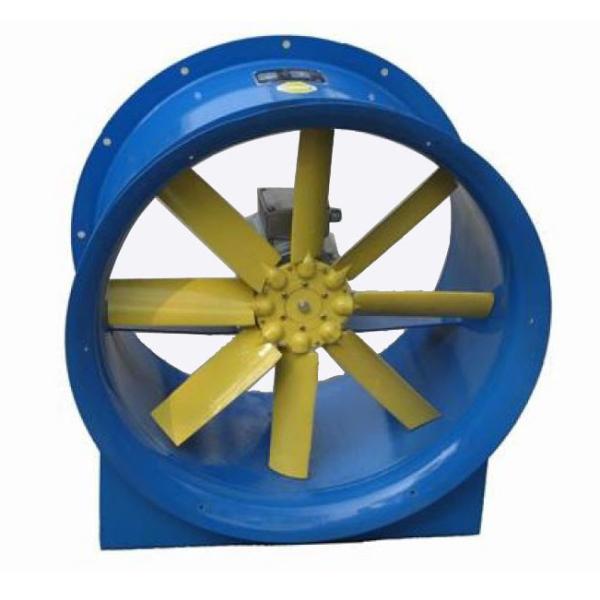

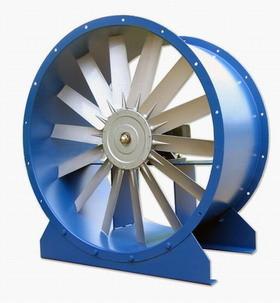

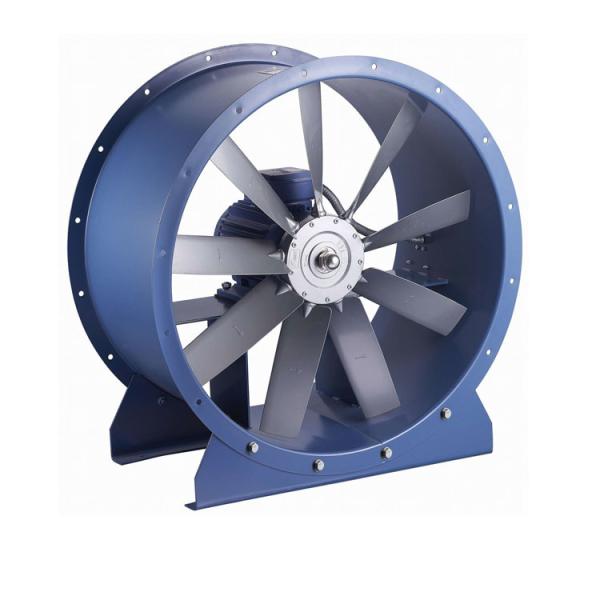

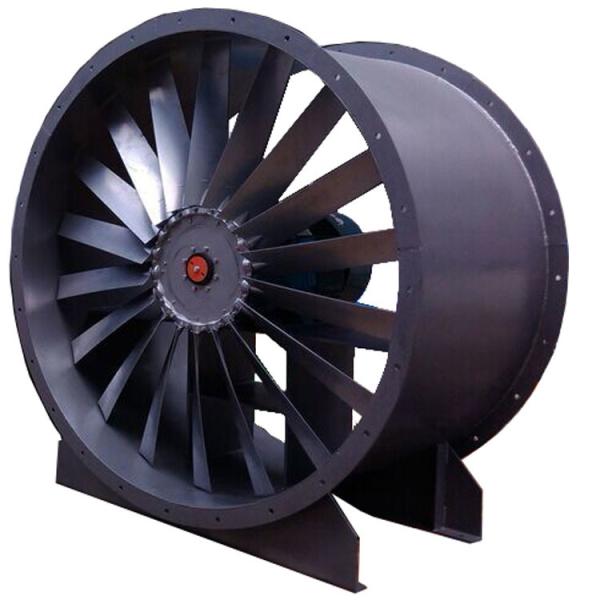

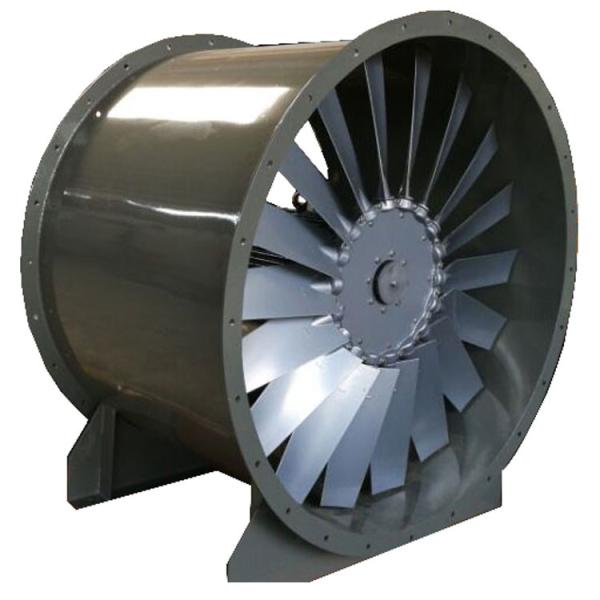

FW Industrial Air Extractor

Low noise axial flow fan is a new generation of low noise one, it is used the optimization design of aerodynamic principles and advanced processing technology. The whole machine is reasonable in structure, durable, safe and practical. With the following advantages that large air volume, high air pressure, low noise, low power consumption, light weight and in thesame installation position can realize the positive, reverse bidirectional

FW axial flow fan with impeller diameter is different, there are eleven types of specifications, i.e. fan diameter from 400mm to 1800mm. Each machine has a number of blades is 8-18, the blade have six kinds of installation angle, there are from 15-40 degree.

FW low noise axial flow fan with high temperature motor (class F insulation, protection grade IP54), casing adopts high-temperature baking process, can run at 120 degree Celsius below high temperature environment for a long time. The impeller is composed of low magnesium alloy is made, with explosion-proof performance. Therefore, in supporting the flameproof motor, can transportation of flammable gas.

Main Technical Parameter of Industrial Air Extractor

Model Number	Rotation (r/min)	Adjust Blade Deg.	Air Volume (m3/h)	Pressure (Pa)	Power (KW)	Model Number	Rotation (r/min)	Adjust Blade Deg.	Air Volume (m3/h)	Pressure (Pa)	Power (KW)
400	1450	15	4256	122.2	0.37	900	1450	15	25367	350	5.5
		20	5034	144	0.55			20	36465	380	7.5
		25	5250	156.6	0.55			25	45794	400	7.5
		30	5840	162.8	0.55			30	50033	420	11
		35	6290	168.8	0.55			35	55674	430	11
		40	6650	176	0.55			40	59845	460	15
450	1450	15	6363	162.8	0.75		960	15	16911	178	1.5
		20	7526	191.8	1.1			20	24136	197	2.2
		25	7849	208.6	1.1			25	30319	210	3
		30	8731	216.9	1.1			30	33125	230	3
		35	9404	224.9	1.1			35	36860	260	4
		40	9942	234.5	1.1			40	39622	288	5.5
500	1450	15	4213	155	0.55	1000	1450	15	38276	430	7.5
		20	5355	167	0.55			20	49662	460	7.5
		25	6745	175	0.55			25	52023	490	11
		30	8134	183	0.75			30	58159	530	15
		35	9325	202	1.1			35	60036	560	15
		40	10515	221	1.1			40	65230	590	18.5
	960	15	2789	68	0.37		960	15	25517	220	2.2
		20	3545	73.2	0.37			20	33108	243	3
		25	4465	76.6	0.37			25	41589	259	4
		30	5385	80.2	0.37			30	45439	284	5.5
		35	6174	88.6	0.37			35	50562	321	7.5
		40	6962	96.9	0.37			40	54351	356	7.5
560	1450	15	6928	161	0.55	1120	960	15	38700	303	5.5
		20	9316	179	0.75			20	49319	336	7.5
		25	11693	187	1.1			25	58428	358	11
		30	12777	207	1.1			30	63836	393	11
		35	14075	237	1.5			35	71034	444	15
		40	15482	256	1.5			40	77357	491	15
	960	15	4587	71	0.37		720	15	29025	170	2.2
		20	6165	78	0.37			20	36989	189	3
		25	7742	82	0.37			25	43821	201	4
		30	8458	92	0.37			30	47877	221	4
		35	9315	103	0.37			35	53276	250	5.5
		40	10250	114	0.55			40	58018	276	7.5
600	1450	15	8879	184	0.75	1250	960	15	49837	344	7.5
		20	11931	204	1.1			20	64664	380	11
		25	14984	212	1.5			25	81228	405	15
		30	16370	238	1.5			30	88748	444	18.5
		35	18035	257	2.2			35	98974	502	22
		40	20016	299	3			40	106154	556	22
