Specifications
Certification :
CE ,Rohs
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
Paypal ,Western Union or T/T, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
3-5 days after confirm your payment for sample order or according to your order quantity
Packaging Details :
Color Box
Model Number :
RBL-10A
Type :
PWM
Display :
LCD Display
System Volatge :
12V/24V Automatic Recognition
USB output :
5V/3A
Description
Features :

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.
Specification :
RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
MODEL RBL-10A RBL-20A RBL-30A RBL-40A RBL-50A RBL-60A
Battery Voltage 12V 24V Auto
Charging Current 10A 20A 30A 40A 50A 60A
Discharging Current 10A 10A 10A 20A 30A 30A
Max Solar input 48V(for 24V battery) 24V(for 12V battery)
Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge 13.7V(defaul,adjustable)
Discharge stop 10.7V(defaul,adjustable)
Discharge reconnect 12.6V(defaul,adjustable)
Charge reconnect 13V
Voltage of open light Solar Panel 8V(Light lights delay)
Voltage of close light Solar Panel 8V(Light off delay)
USB output 5V/3A
Self-consume <10mA
Operating temperature -35°C~+60°C
Size 133.5*70*35mm 188*90*47mm

*all red color voltage X2 ,while using 24V system.

Connection :

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

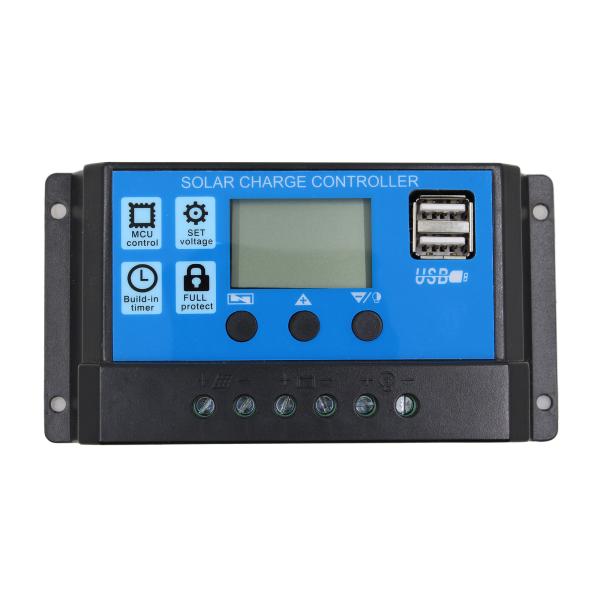

10A/20A/30A/40A/50A/60A 12V 24V LCD Display Dual USB 5V Output Auto Solar Charge Controller PWM Controllers10A/20A/30A/40A/50A/60A 12V 24V LCD Display Dual USB 5V Output Auto Solar Charge Controller PWM Controllers10A/20A/30A/40A/50A/60A 12V 24V LCD Display Dual USB 5V Output Auto Solar Charge Controller PWM Controllers10A/20A/30A/40A/50A/60A 12V 24V LCD Display Dual USB 5V Output Auto Solar Charge Controller PWM Controllers10A/20A/30A/40A/50A/60A 12V 24V LCD Display Dual USB 5V Output Auto Solar Charge Controller PWM Controllers
