Overview :

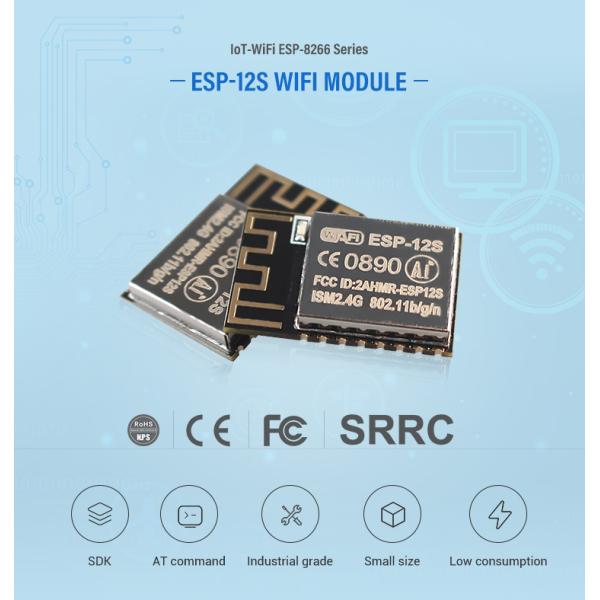

This ESP-12S WiFi module has core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antennas. The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack. Users can use the add modules to an existing device networking, or building a separate network controller.

ESP8266 is high integration wireless SOCs, designed for space and power constrained mobile platform designers. It provides unsurpassed ability to embed Wi-Fi capabilities within other systems, or to function as a standalone application, with the lowest cost, and minimal space requirement.

Features :

· 802.11 b/g/n ESP-12S
· Integrated low power 32-bit MCU
· Integrated 10-bit ADC
· Integrated TCP/IP protocol stack
· Integrated TR switch, balun, LNA, power amplifier and matching network
· Integrated PLL, regulators, and power management units
· Supports antenna diversity
· Wi-Fi 2.4 GHz, support WPA/WPA2
· Support STA/AP/STA+AP operation modes
· Support Smart Link Function for both Android and iOS devices
· SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
· STBC, 1x1 MIMO, 2x1 MIMO
· A-MPDU & A-MSDU aggregation and 0.4s guard interval
· Deep sleep power <10uA, Power down leakage current < 5uA
· Wake up and transmit packets in < 2ms
· Standby power consumption of < 1.0mW (DTIM3)
· +20dBm output power in 802.11b mode

Specification :

· WiFi Protocol :802.11 b/g/n
· Frequency Range:2.4GHz-2.5GHz (2400M-2483.5M)
· Peripheral Bus:UART/HSPI/I2C/I2S/Ir Remote Contorl;GPIO/PW
· Operating Voltage :3.3V
· Operating Current: Average value: 80mA
· Operating Temperature Range: -40°~125°
· Ambient Temperature Range: Normal temperature

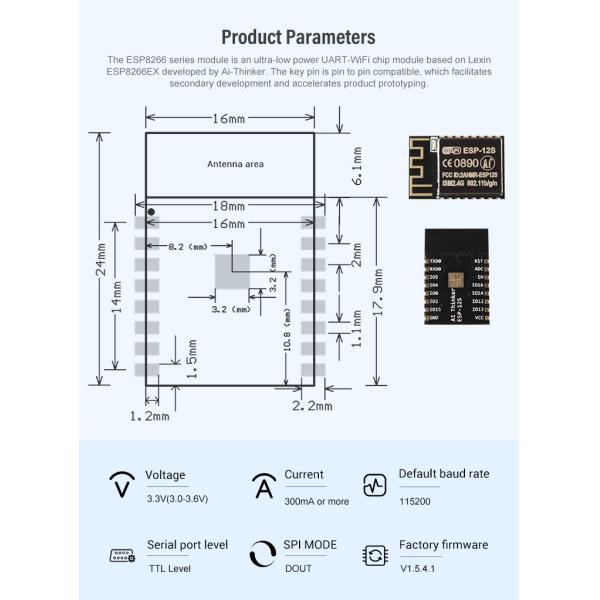

· Package Size: 18mm*20mm*3mm
· External Interface: N/A`
· Wi-Fi mode: station/softAP/SoftAP+station
· Security: WPA/WPA2
· Encryption: WEP/TKIP/AES
· Firmware Upgrade: UART Download / OTA (via network) / download and write firmware via host
· Support software Development: Supports Cloud Server Development / SDK for custom firmware development
· Network Protocols: IPv4, TCP/UDP/HTTP/FTP
· User Configuration: AT Instruction Set, Cloud Server, Android/iOS APP

Applications :

· Home automation,
· Sensor networks,
· Industrial wireless control
