Specifications
Model Number :
GS-AM2105A
Certification :
CE , Rohs
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
Paypal ,Western Union or T/T, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
3-5 working days for sample order or according to your order quantity
Packaging Details :
Anti-Static Bag
Usage :
Industrial
Typical Accuracy :
0.5℃ ± 2% RH
Operating Range :
0~99.9%RH
Interface :
1-Wire
Measurement Range (temperature) :
-40~+80℃
Supply Voltage :
3.3~5.5V
Description

Overview :

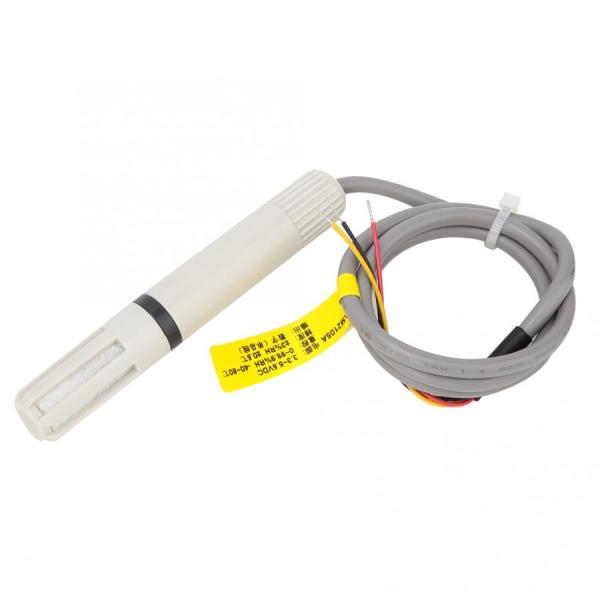

AM2105A digital temperature and humidity module is a kind of sensor with calibrated digital signal output. It adopts special digital module acquisition technology and temperature and humidity sensing technology to assure the product high reliability and excellent long-term stability. It consists of a capacitive moisture sensing element and a high precision integrated temperature measuring element connected with a high performance microprocessor. AM2105A communication mode adopts single bus communication mode and standard single bus interface, making system integration easy and quick. Its ultra-small size, extremely low power consumption and signal transmission distance of more than 20 meters make it the best choice for all kinds of applications and even the most demanding applications. The users can obtain the accurate temperature and humidity information without calculating the digital output twice and compensating the temperature of humidity.

Features :

• Complete interchange
• Digital output, single bus interface
• Excellent long-term stability
• Low power consumption, cost-effective

Specification :

Supply voltage DC: 3.3-5.5V
Measuring range Temperature: -40~+80°C Humidity: 0~99.9%RH
Accuracy Temperature: ± 0.5 ° C Humidity: ± 3% RH (25 ° C)
Resolution Temperature: 0.1 ° C Humidity: 0.1% RH
Attenuation value Temperature: <0.3 °C / annual humidity: <0.5% RH / year
Sensor Capacitive humidity sensor
Output signal single bus digital signal
Housing material ABS plastic


Package List:

1*Temperature and Humidity Sensor
1*Pair Screws
1*Pair Plastics Plug
1*Fixed Sleeve

Application Range :


HVAC, dehumidifier, testing and testing equipment, consumer goods, automotive, automatic control, data recorder, weather station, home appliances, medical and other related humidity control, humidity measurement and control.

Note:

Because there was a manual measuring ,the size may has 1-2cm/inch difference.
The color may be slight different due to the condition or light or different monitor.
