Features:

1.The control principle: an IC control an LED form a loop (a), the controller IC on the FPCB through the control circuit inside the control to control the LED lights change different effects; such as flashing, chasing, jumping, Happy clockwise, counterclockwise Happy, Happy monochrome, color Happy, single chase from start to finish, running water, simulated lightning; changing effect this section is not limited to the current light bar controller built-in 94 kinds of effects can be based on customer needs , write your own; arranged in the form of screen can display, text, letters, pictures, animations, and so on.
2.Environmental safety: high quality highlight SMD 5050 LED. With small power consumption, resulting in less heat, no glare, impact resistance and other characteristics. Low voltage DC 5V power supply, high security and reliability.
3.Color can be varied by the controller needs to be adjusted according to the customer.
4.Long life: average life expectancy of 50,000 hours.
5.Cutting, welding facilitate freedom: each group of LED to form a loop, you can cut off any tangent meet customer requirements and demand for welding various lengths of light bar along the top.
6.Soft: A soft FPCB board as a substrate, can butt, bending, cutting, and easily fixed to unsmooth surface.
7.Light, thin: suitable for installation in narrow space inside

Please pay attention:

IP30 Non-waterproof

IP65 Waterproof in silicon coating

IP67 Waterproof in silicon tube

Specification :

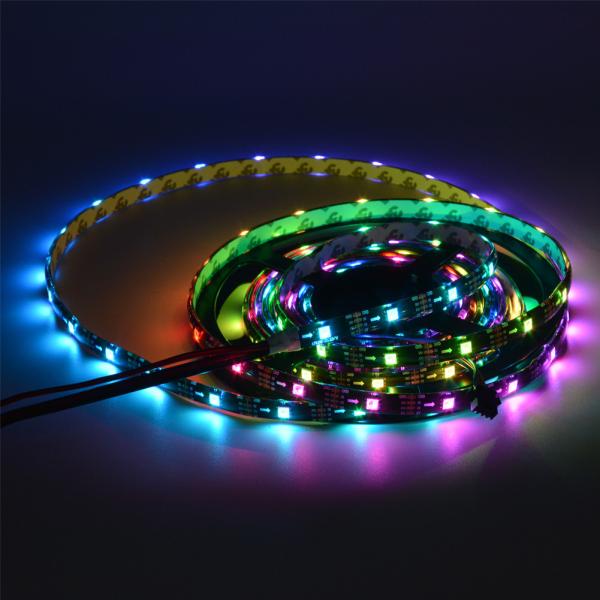

LED source :SMD5050 RGB built-in APA102 chipset
IC Type:APA102

Chip: Epistar chip
Gray scale: 256 Pixels :144/Meter
LED Quantity: 144 LED/m (each LED is separately controlled)

IC Quantity: 144 IC/m (1 IC drives 1 led chip)
Viewing angle: 120 °

Sheet: FPCB
Color: Full color RGB , can be adjusted
Standard Operating Voltage: DC 5V

Drive Mode:Constant Voltage
Output Power: 43.2W/M

FPCB board Dimensions: Width: 12mm, thickness:2.0mm

Waterproof Rate:IP30 Non-waterproof
FPCB color: Black

Working Tempreture:-20° to 60°

Cuttable: every LED is cuttable
Packing: 1m/roll, static bag packaging
Supporting Symphony controller T-1000S

Applications:

• Widely used for home, hotels, clubs, shopping malls.
• Architectural decorative lighting, boutique atmosphere lighting
• Extensively applied in Back-lighting, concealed lighting
• Emergency & security lighting, advertisement sign lighting
• Holiday, event, show exhibition decoration.

Installation Instructions:

• Clean the surface you intend to stick the light strip to
• Peel off the backing strip off the 3M adhesive tape
• Press and hold the light strip firmly against the surface
• Connect the 4-Pin input of the light strip to the 4-Pin output of the Controller
• Connect the DC jack output of the power adapter to the DC jack input of the Controller
• Remove the tab from the battery compartment of the remote control
• Connect your power adapter to your wall outlet. Your light strip is now ready to use.
