Specifications
Place of Origin :
China
Brand Name :
Jinlida
Model Number :
LNWL33-70-2
MOQ :
1
Price :
Competitive price
Packaging Details :
Nude packing
Delivery Time :
50 days
Payment Terms :
L/C,T/T
Supply Ability :
200 sets/year
Type :
Automatic
Weight :
15t
Warranty :
1 year
Mesh Width :
3300mm
Description

Custom Automatic Hexagonal Gabion Mesh Machine , PVC Coated Wire

Quick Detail:

1. High efficiency and stability

2. Low noise

3. Automatic Oil System

4. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically

5. Infrared ray safety protection system (option)

Description:

We can manufacture gabion machine according to customer request.

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.

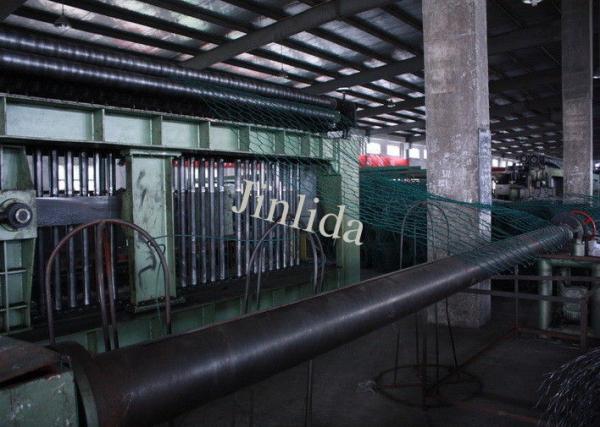

Picture For Gabion Machine Working

Custom 3300mm Automatic Hexagonal Gabion Mesh Machine , PVC Coated Wire

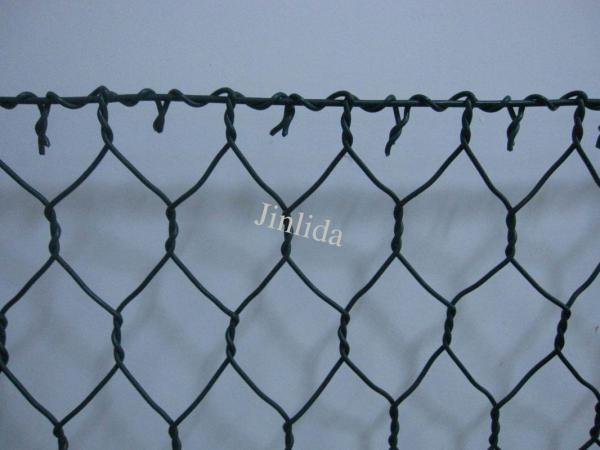

Gabion Application

Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh

sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC

coated wire is available.

Custom 3300mm Automatic Hexagonal Gabion Mesh Machine , PVC Coated Wire

Specifications:

Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255
