1. Gabion Mesh Machine:
Our company KONSON is famous manufacturer of gabion machine, gabion production line and gabion boxes in China. We keep developing new machines and export machines to foreigner countries. Our machine is the leader in the technological area. KONSON exported machines to Russia, Thailand, Poland, Croatia, Bulgaria, Algeria, Morocco, Ethiopia and South Africa etc.

Automatic Gabion Mesh Machine Width 4.3M With Infrared Ray Safety And SGS/TUV Certificate

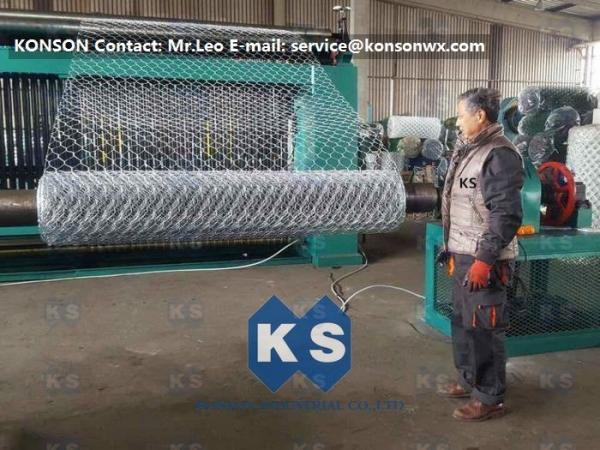

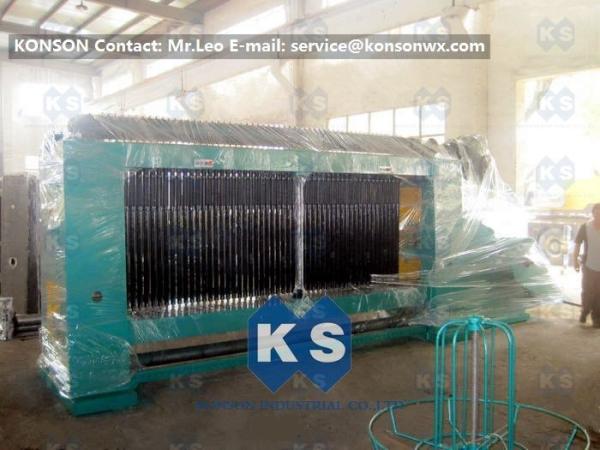

Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine. Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.

Main netting Machine:
1. Model: KS80100-4.0
2. Mesh size: 80x100mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm

KS series machine has the feature of rational design, simple structure, smooth running, excellent performance, reliable operation and convenient maintenance.

Advantages:
A1. CE certificate.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.
