Zinc PVC Wire Gabion Box Machine Overload Protect Clutch Automatic Oil System
Zinc PVC Wire Gabion Box Machine Overload Protect Clutch Automatic Oil System
Zinc PVC Wire Gabion Box Machine Overload Protect Clutch Automatic Oil System
Zinc PVC Wire Gabion Box Machine Overload Protect Clutch Automatic Oil System
Specifications
Brand Name :
Konson
Model Number :
KS100120-3.2
Certification :
CE, ISO9001, SGS, ASTMA, EN, BS standard.
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set or as your request.
Price :
Discuss in mail
Payment Terms :
L/C,D/A,D/P,T/T,or as your request.
Supply Ability :
8 Set/Sets per Month or as your request.
Delivery Time :
Within 35 days after the prepayment.
Packaging Details :
One 40feet Open Top Container, Wooden pallet or as your request.
Port :
Shanghai
Mesh Size :
100X120 mm
Working width :
3200mm
Producing Rate :
>3.5 m/min
Product Name :
Gabion Machine
MAX.WIRE DIA. :
3.5mm
PVC Wire :
Available
Description

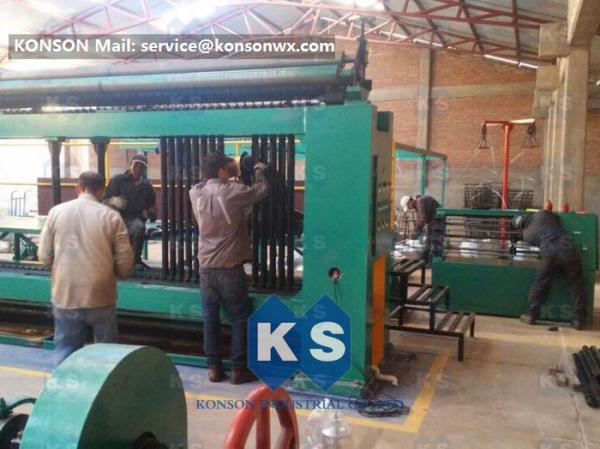

Zinc PVC Wire Gabion Machine Overload Protect Clutch Automatic Oil System

Gabion Machine Features

1, Schneider/Siemens/ electric components+ touch screen

2, Our machine adopts double driving rods, high speed and running smoothly.

3, New welding cross beam, high stability.

4, Weaving one net or several nets at the same time.

5, Complete production line of gabion mesh machine.

Gabion Machine Wire Advantages:

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.

The standard machines of production line: Main netting machine, winding machine, wire tension device, spiral coiling machine. We can also supply the complete production line, you may choose the optional machines according to your demand.

  • The mesh is even and tidy and can be threaded in any position.
  • With clutch brake device, it can be jogged and the operation is flexible and reliable.
  • Centralized lubrication, easy to use, and reliable lubrication.
  • Rugged and easy to maintain and adjust.

A1. The new drive mode
A2. High-efficiency: theoretic output = 4.15m/min

A3. Turbine protection system (Option)

A4. Infrared ray safety (Option)

A5. Automatic stop system (Option)
A6. Automatic oil system

A7. Overload protect clutch

Patented invention: Five twist hexagonal wire mesh

Konson Automatic Gabion Machine:


It can provide gabion mesh products for domestic companies for various kinds of construction items.

The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection etc.The gabions can be build retaining walls, river bank protections, weirs, etc.

At present our company possesses four assembly lines of heavy series hexagonal wires nets.

Konson Automatic Gabion Machine Specification:

KS machine is designed to produce hexagonal mesh of various widths and sizes:

MODEL MESH SIZE MAX.WIRE DIA. MAX WIDTH PRODUCING RATE
KS6080-2.4

60X80

mm

 3.0mm 2400mm >3.3 m/min
KS6080-3.2 3.5mm 3200mm
KS6080-4.0 3.5mm 4300mm
KS80100-2.4

80X100

mm

 3.5mm 2400mm >3.5 m/min
KS80100-3.2 3.5mm 3200mm
KS80100-4.0 4.0mm 4300mm
KS100120-2.4

100X120

mm

 3.5mm 2400mm >3.5 m/min
KS100120-3.2 3.5mm 3200mm
KS100120-4.0 4.0mm 4300mm
KS120150-2.4

120X150

mm

 4.0mm 2400mm >3.8 m/min
KS120150-3.2 4.0mm 3200mm
KS120150-4.0 4.0mm 4300mm

Zinc PVC Wire Gabion Box Machine Overload Protect Clutch Automatic Oil System

Installation and service:

We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.

Q: 1. How to transport the machine?

A: As usual, we use 40 feet open top container to load the machine and transport it by sea.

We also exported to inland country, so we use 40 feet HQ container to load the machine and transport it by railway.

Q: 2. What is the delivery time of equipment?

A: According to the quantity of your demand, for example, if you need one set machine, we will finish it in 30 days.
