High Efficiency Netting Gabion Mesh Machine Basket Production Line Max Width 4300mm
High Efficiency Netting Gabion Mesh Machine Basket Production Line Max Width 4300mm
Specifications
Brand Name :
Konson
Model Number :
KS80100-4.0
Certification :
CE, ISO9001, SGS test, Chinese Patent
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Discuss in mail
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets per Month
Delivery Time :
within 30 days in receiving prepayment
Packaging Details :
One 40' Open Top Container, wooden pallet, as your design
Product Name :
Gabion Mesh Machine
MESH SIZE :
80X100 mm
MAX.WIRE DIA. :
4.0mm
MAX WIDTH :
4300mm
Advantage :
High Efficiency
PRODUCING RATE :
>3.5 m/min
Description

High Efficiency Netting Gabion Mesh Machine Basket Production Line Max Width 4300mm

Gabion Mesh Machine Benifits

1. Gabion mesh machine is also called heavy duty hexagonal wire mesh machine, gabion machine , stone cage making machine.

2. This gabion machine weave hexagonal mesh vertically.

The KS series automatic gabion machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.

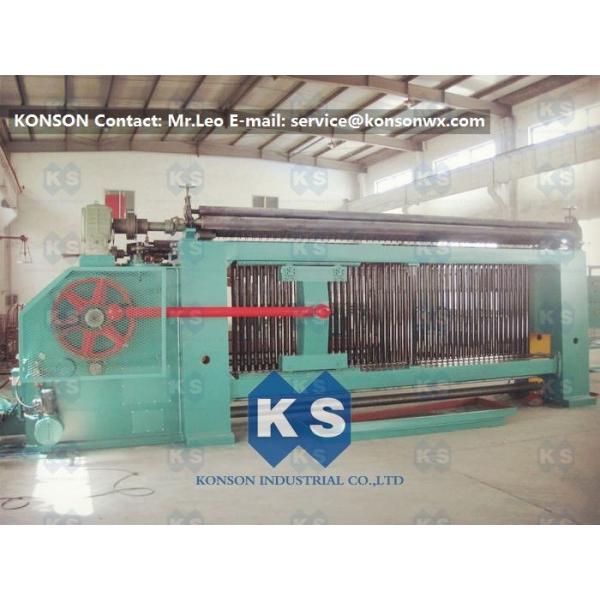

Automatic Gabion Mesh Machine:

Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine. Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.

Specification:

MODEL

MESH SIZE

MAX.WIRE DIA.

MAX WIDTH

PRODUCING RATE

KS6080-2.4

60X80

mm

3.0mm

2400mm

>3.3 m/min

KS6080-3.2

3.5mm

3200mm

KS6080-4.0

3.5mm

4300mm

KS80100-2.4

80X100

mm

3.5mm

2400mm

>3.5 m/min

KS80100-3.2

3.5mm

3200mm

KS80100-4.0

4.0mm

4300mm

KS100120-2.4

100X120

mm

3.5mm

2400mm

>3.5 m/min

KS100120-3.2

3.5mm

3200mm

KS100120-4.0

4.0mm

4300mm

KS120150-2.4

120X150

mm

4.0mm

2400mm

>3.8 m/min

KS120150-3.2

4.0mm

3200mm

KS120150-4.0

4.0mm

4300mm

High Efficiency Netting Gabion Mesh Machine Basket Production Line Max Width 4300mm
