Hexagonal Mesh PVC Gabions with Hot Dip Galvanized Wire Double Twisted Mesh
Hexagonal Mesh PVC Gabions with Hot Dip Galvanized Wire Double Twisted Mesh
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Konson
Certification :
CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number :
KS-PVC-Gabion
MOQ :
1000 sqm
Price :
Discuss in mail
Packaging Details :
weave bag,flat bundle,binding with steel strape or strands,some rolls.as your design.
Delivery Time :
10 days for 1x40 feet FCL
Payment Terms :
L/C,T/T
Supply Ability :
12000 sqm per day
Quick Details :
Hexagonal Wire Mesh
Twist :
Double Twisted
mesh shape :
hexagonal
Mesh size :
60mm X 80mm...
Max Width :
4300mm...
Body Wire Dia :
2.0mm - 2.8mm...
Description
Quick Details: Hexagonal Wire Mesh Twist: Double Twisted
Mesh Shape: Hexagonal Mesh Size: 60mm X 80mm...
Max Width: 4300mm... Body Wire Dia: 2.0mm - 2.8mm...

Hexagonal Mesh PVC Gabions Hot Dip Galvanized Wire Double Twisted Mesh

Details:

PVC coated galvanized gabion is the gabion which are woven by the hexagonal mesh, the diameter thickness depends on the mesh size, the diameter is between 2.0mm to 4.0mm if the material is zinc coated, while the diameter will be 3.0mm to 4.5mm if the material is PVC-coated wire, the selvage wire diameter usually is one gauge thicker than the body wire diameter.

Specification:

KS Hexagonal wire mesh

Mesh size
(mm)

Body Wire Dia.(mm)

Wire (PVC wire )/Inner/Outside
Dia.(mm)

Max Width (mm)

60X80

2.0-2.8

2.0/3.0-2.5/3.5

4300

80X100

2.0-3.2

2.0/3.0-2.8/3.8

4300

80X120

2.0-3.2

2.0/3.0-2.8/3.8

4300

100X120

2.0-3.4

2.0/3.0-2.8/3.8

4300

100X150

2.0-3.4

2.0/3.0-2.8/3.8

4300

120X150

2.0-4.0

2.0/3.0-3.0/4.0

4300

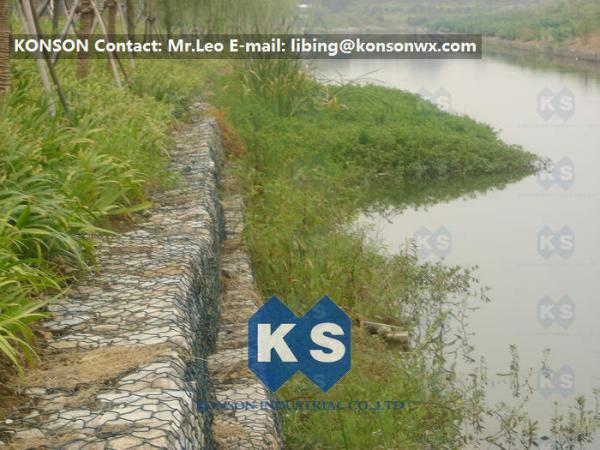

Engineering projects:

Hexagonal Mesh PVC Gabions with Hot Dip Galvanized Wire Double Twisted Mesh
