Galvanized Gabion Basket Woven Hexagonal Wire Mesh PVC Coated Welded Gabions
Galvanized Gabion Basket Woven Hexagonal Wire Mesh PVC Coated Welded Gabions
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Konson
Certification :
ISO9001,SGS,CE,ASTMA97597,EN 10223 standard.
Model Number :
KS-GP
MOQ :
1000 sqm
Price :
Discuss in mail
Packaging Details :
weave bag,flat bundle,binding with steel strape or strands,some rolls.as your design.
Delivery Time :
10 days for 1x40 feet FCL
Payment Terms :
L/C,T/T
Supply Ability :
12000 sqm per day
Description

PVC Coated Galvanized Gabion Woven By The Hexagonal Mesh Wire Mesh Gabion Basket

PVC coated galvanized gabion is the gabion which are woven by the hexagonal mesh, the diameter thickness depends on the mesh size, the diameter is between 2.0mm to 4.0mm if the material is zinc coated, while the diameter will be 3.0mm to 4.5mm if the material is PVC-coated wire, the selvage wire diameter usually is one gauge thicker than the body wire diameter.

PVC coated galvanized gabion specification:

mesh(mm)

wire(mm)

wire(PVC)/inner/outside(mm)

biggest width (mm)

60X80

2.0-2.8

2.0/3.0-2.5/3.5

4300

80X100

2.0-3.2

2.0/3.0-2.8/3.8

4300

80X120

2.0-3.2

2.0/3.0-2.8/3.8

4300

100X120

2.0-3.4

2.0/3.0-2.8/3.8

4300

100X150

2.0-3.4

2.0/3.0-2.8/3.8

4300

120X150

2.0-4.0

2.0/3.0-3.0/4.0

4300

Galvanized Gabion Basket Woven Hexagonal Wire Mesh PVC Coated Welded Gabions

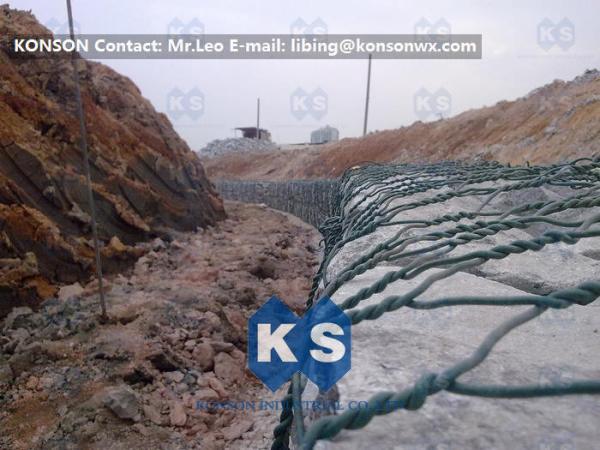

1. Coastal Protection
2. Building blocks of gravity walls
3. Reinforced structure
4. Control and guide of water or flood
5. Flood bank or guiding bank
6. Preventing of rock breaking
7. Bridge protection
8. Strengthening structure of soil
9. Protect the engineering in seaside area
