PVC / Zinc Coated Wire Mesh Gabion Retaining Wall , Galvanized Hexagonal Wire Fence
PVC / Zinc Coated Wire Mesh Gabion Retaining Wall , Galvanized Hexagonal Wire Fence
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Konson
Certification :
ISO9001,SGS,CE,ASTMA97597,EN 10223 standard.
Model Number :
KS-GH
MOQ :
1000 sqm
Price :
Discuss in mail
Packaging Details :
weave bag,flat bundle,binding with steel strape or strands,some rolls.as your design.
Delivery Time :
10 days for 1x40 feet FCL
Payment Terms :
L/C,T/T
Supply Ability :
12000 sqm per day
Description

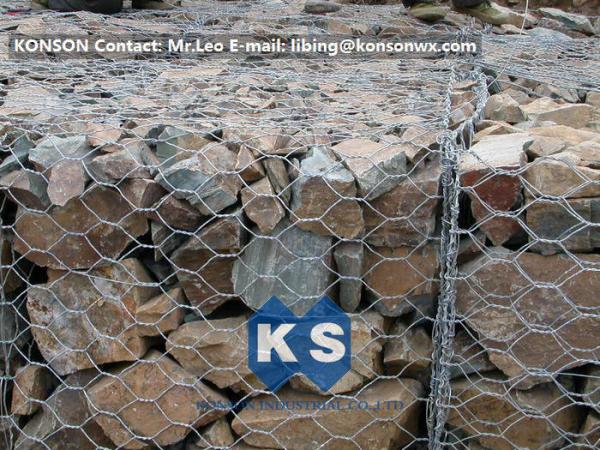

Gabion Retaining Wall PVC / Zinc Coated Wire Mesh Galvanized Hexagonal Wire Fence

Galvanized hexagonal gabion is the gabion which are woven by the hexagonal mesh,

the diameter thickness depends on the mesh size, the diameter is between 2.0mm to 4.0mm if the

material is zinc coated, while the diameter will be 3.0mm to 4.5mm if the material is PVC-coated wire

, the selvage wire diameter usually is one gauge thicker than the body wire.

PVC / Zinc Coated Wire Mesh Gabion Retaining Wall , Galvanized Hexagonal Wire Fence


Purpose:
1.Controlling and leading the river and flood
2.Flood discharge and lead flow
3.rock fall defending
4.preventing the water and soil lost
5.protecting the bridge
6.reinforce fabric
7.seashore recovery project
8.seaport project
9.block wall
10.defending the road

mesh(mm)

wire(mm)

wire(PVC)/inner/outside(mm)

biggest width (mm)

60X80

2.0-2.8

2.0/3.0-2.5/3.5

4300

80X100

2.0-3.2

2.0/3.0-2.8/3.8

4300

80X120

2.0-3.2

2.0/3.0-2.8/3.8

4300

100X120

2.0-3.4

2.0/3.0-2.8/3.8

4300

100X150

2.0-3.4

2.0/3.0-2.8/3.8

4300

120X150

2.0-4.0

2.0/3.0-3.0/4.0

4300
