Durable Metal Hexagonal Mesh Machine For Making Gabion Mesh Spiral Coil
Durable Metal Hexagonal Mesh Machine For Making Gabion Mesh Spiral Coil
Durable Metal Hexagonal Mesh Machine For Making Gabion Mesh Spiral Coil
Durable Metal Hexagonal Mesh Machine For Making Gabion Mesh Spiral Coil
Specifications
Brand Name :
Konson
Model Number :
KS80100-4.0
Certification :
CE, ISO9001, SGS, ASTMA, EN, BS standard.
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Discuss in mail
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets per Month
Delivery Time :
within 30 days in receiving prepayment
Packaging Details :
One 40 feet Open Top Container, wooden pallet, as your design
System :
PLC Control System
Type :
Fully Automatic
Usage :
Industrial Profiles
Function :
Stable
Product name :
Gabion Wire Mesh Machine
Size :
80X100 mm
Description

High Efficiency Metal Hexagonal Mesh Machine For Making Gabion Mesh Spiral Coil

Quick Detail:

1. The mesh weaving machine we made adopts PLC control system and automatic oil system.

2. It is the ideal machinery that weaves big signification,breadth portal arm, thick silk gabion mesh.

3. For high corrosion resistance,zinc and PVC, Galfan coated is available.

All the parts of gabion machine are processed by our own factory; no parts were send to outside to process, so the quality can be ensured.

We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.

Konson Machine exported:

Durable Metal Hexagonal Mesh Machine For Making Gabion Mesh Spiral CoilDurable Metal Hexagonal Mesh Machine For Making Gabion Mesh Spiral Coil

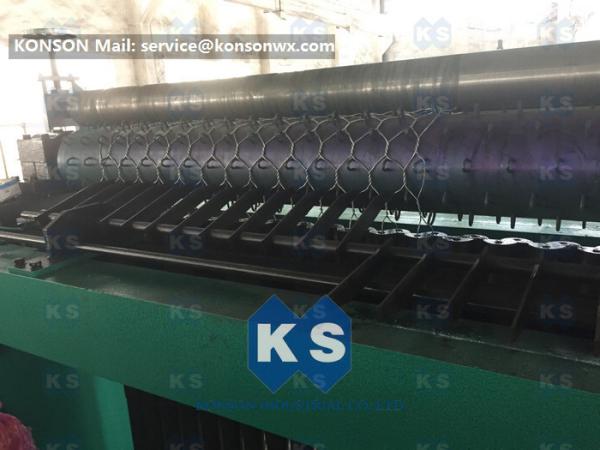

Hexagonal Mesh Machine

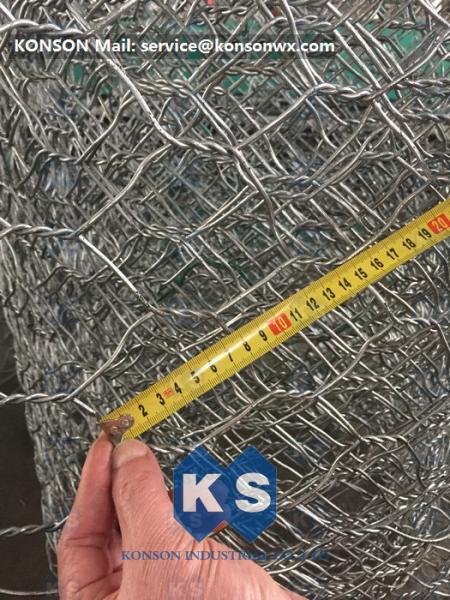

1. Mesh sizes: 80X100mm

2. Twist model: double twist & three twist

3. Max. netting width: 4300mm

4. Max. galvanized wire dia.: 3.9mm

5. Max PVC wire diameter: 4.9mm

6. Theoretic output: 255m/hr

7. Power: 22Kw

8. Dimensions: 8100 x 1400 x 2400mm

9. Weight: 15MT

10. Automatic oil system

11. Automatic stop system

12. Infrared ray safety system

All of the core parts of machines are processed by our own factory, the quality can be ensured.

Specification:

MODEL

MESH SIZE

MAX.WIRE DIA.

MAX WIDTH

PRODUCING RATE

KS6080-2.4

60X80

mm

3.0mm

2400mm

>3.3 m/min

KS6080-3.2

3.5mm

3200mm

KS6080-4.0

3.5mm

4300mm

KS80100-2.4

80X100

mm

3.5mm

2400mm

>3.5 m/min

KS80100-3.2

3.5mm

3200mm

KS80100-4.0

4.0mm

4300mm

KS100120-2.4

100X120

mm

3.5mm

2400mm

>3.5 m/min

KS100120-3.2

3.5mm

3200mm

KS100120-4.0

4.0mm

4300mm

KS120150-2.4

120X150

mm

4.0mm

2400mm

>3.8 m/min

KS120150-3.2

4.0mm

3200mm

KS120150-4.0

4.0mm

4300mm

Advantages:

A1. CE certificated.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12 months guarantee for all the equipments, we will arrange our engineer to install the machines in your factory and teach your workers how to produce, we will also send accessories and spare parts without any cost.
