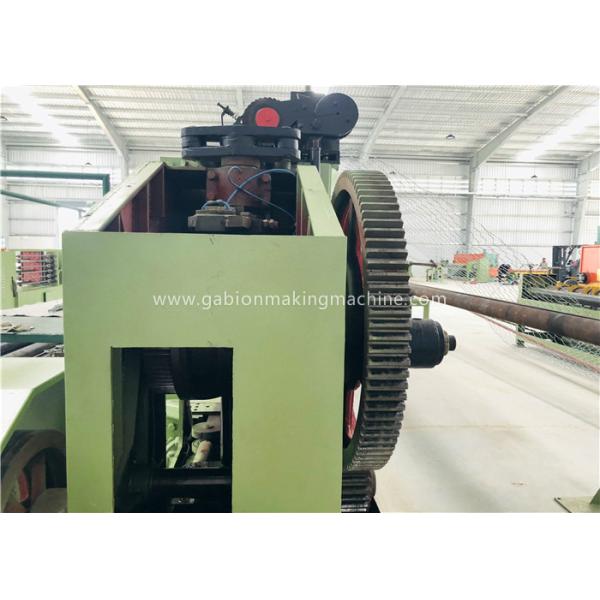

Professional Hexagonal Wire Netting Machine 3 Twist Smooth Running Gabion Net Machine
Professional Hexagonal Wire Netting Machine 3 Twist Smooth Running Gabion Net Machine
Professional Hexagonal Wire Netting Machine 3 Twist Smooth Running Gabion Net Machine
Professional Hexagonal Wire Netting Machine 3 Twist Smooth Running Gabion Net Machine
Specifications
Model Number :
LNWL-2055-2
Certification :
CE ,ISO
Place of Origin :
CHINA
MOQ :
one set
Payment Terms :
L/C,T/T
Supply Ability :
10 sets/month
Delivery Time :
30 work days
Packaging Details :
Nude packing&fixed by iron wire
Mesh Size :
18x5mm
Mesh Wdith :
1200mm
Max Wire Dia :
0.9mm
Machine motor :
3kw
name :
Hexagonal Wire Netting Machine
Theoretic output :
33m/hr
Description

3 Twist Smooth Running Hexagonal Wire Netting Machine / Gabion Net Machine

Description:

The series hexagonal wire netting machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.

Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine. Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.

Machine Specifications:


Style Specification Mesh size Width Wire diamater

Twisting

Lines

 Spindle Speed power of motor

Theoretic

output
(mm) (mm) (mm) r (r/min) (kw) (m/h)
LNWL-1015-2 1/2' 15x18 1200 0.8 3 33 3 51
LNWL-1018-2 5/8' 18x5 0.9 3 67
LNWL-1022-2 3/4' 22x33 1.2 3/5 83
LNWL-1027-2 1' 27x41 3/5 100
LNWL-1032-2 1/1/4' 32x52 3/5 122
LNWL-1039-2 1/1/2' 39x61 3 142
LNWL-1055-2 2' 55x70 3 162
LNWL-1078-2 3' 78x86 3/5 194
LNWL-2015-2 1/2' 15x18 2200 0.8 3 33 3 51
LNWL-2018-2 5/8' 18x5 0.9 3 67
LNWL-2022-2 3/4' 22x33 1.2 3/5 83
LNWL-2027-2 1' 27x41 3/5 100
LNWL-2032-2 1/1/4' 32x52 3/5 122
LNWL-2039-2 1/1/2' 39x61 3 142
LNWL-2055-2 2' 55x70 3 162
LNWL-2078-2 3' 78x86 3/5 194

Advantage:

1. professional manufacturer, not trading company, we supply advanced

machine to oversea clients directly only. We can produce the machine as your requirement.

2. Model GLL (T) is a light series of mesh weaving machines, including 7 different types of

machines, i.e. with which the galvanized hexagonal wire mesh of different apertures can be

woven

3. The maximum diameter of the wire that can be woven on this type of machine is 1.2m. This

series of product include two types of machines, i.e. the single-head and the double-head

machine

4. The maximum weaving breadth of the single-head machine is 1.2m and that of the double-

head machine is 2.2m

Professional Hexagonal Wire Netting Machine 3 Twist Smooth Running Gabion Net Machine
