Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed
Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed
Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed
Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed
Specifications
Model Number :
LNWL23-120-2
Certification :
ISO,CE
Place of Origin :
China
MOQ :
one set
Supply Ability :
10 sets/month
Delivery Time :
30 work days
Packaging Details :
Nude packing and fixed by iron wire
Power :
11kw
Mesh size :
100X120mm
Spindle Speed :
25r/min
twist :
3 twist
name :
Gabion Box Machine
type :
Automatic oil system
Description

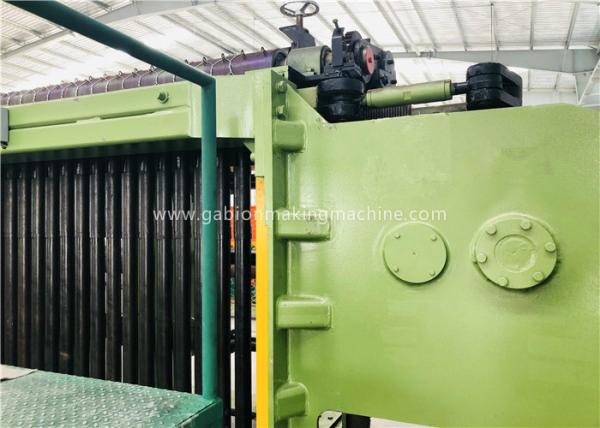

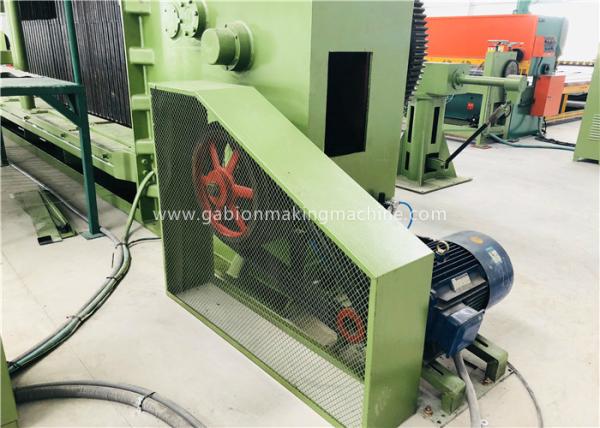

Hillside 3 Twist Gabion Basket Machines with Automatic 25r/min Spindle Speed

Descrition:

The series gabion box machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.

Application:

The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and. etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering. It is one of the best against flooding materials.

Specifications:

Style Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3.2 25 3 11 165
LNWL23-80-2 80X100 1.6-4.0 3 195
LNWL23-100-2 100X120 1.6-4.0 3 225
LNWL23-120-2 120X150 1.6-4.2 20 3 255
LNWL33-60-2 60X80 3300 1.6-3.2 25 3 15 165
LNWL33-80-2 80X100 1.6-4.0 3 195
LNWL33-100-2 100X120 1.6-4.0 3 225
LNWL33-120-2 120X150 1.6-4.2 20 3 255

Competitive Advantage:

1. Our company invented the first special equipment of double twisted wire netting

making machine in China And until now,

we have persevered in this area of gabion machine making for 15 years.

2. All the parts of gabion machine are processed by our own factory; no parts were sending to

outside to process, so the quality can be ensured.

3. We can provide 12months guarantee for all the equipments, and if customer need, we will

arrange our technician to help install the machines in your country, and also could supply all

the spare parts with cost price if customer need
