6×2×0.3m Green PVC Coated Gabion Baskets 0.15m Height
6×2×0.3m Green PVC Coated Gabion Baskets 0.15m Height
6×2×0.3m Green PVC Coated Gabion Baskets 0.15m Height
6×2×0.3m Green PVC Coated Gabion Baskets 0.15m Height
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Raw Material :
Pvc coated or galvanized or galfan coated iron wire
Color :
green, grey, silver
Net wire diameter :
2.0-4.0mm
height :
0.15, 0.17, 0.23, 0.3 m
Length :
2-6m
Hole shape :
hexagonal shape
Opening :
60 x 80 mm; 80 x 100 mm;100 x 120 mm;
Usage :
gabion mattress for fiver band and slope protection
Feature :
Anti-corrosion, flood protective
Description

6 x 2 x 0.3 m for fiver band and slope protection

Gabion Introduction:

Gabion mattress, also called or Mac mattress, is made of steel hexagonal wire mesh. Gabion mattress are filled with rocks at the construction site to form flexible, permeable, monolithic structure.

es are wider, with less depth than standard gabions. es are often used as flexible foundation slabs under gabions. Or used as channel linings and revetment mats.

Gabion Raw material:

1. Materials: electro galvanized, hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).

2. Zinc coating: 10-300g/m2.

3. Tensile strength between 380N/mm2 -- 500N/mm2.

4. Elongation≥ 12%.

5. Mesh hole size: 60*80m, 80*100mm,80*120mm,100*120mm,120*150mm.


Gabion Usage:

Gabion mattress is used for river bank and scour protection, bridge and weir protection, channel linings and erosion control. It is also widely used for the embankment stability.
The woven gabion mattress can be used in the differential settlement applications and the welded gabion mattress can be used in the landscape constructions.

Gabion Specifications:

Specifications of gabion mattress
Length
(m)		 Width
(m)		 Height
(m)
2 1 0.15
0.17
0.23
0.3
3 1
3 2
4 1
4 2
5 1
5 2
6 1
6 2

Hot dip galvanized gabion box
Size(m) Mesh size(cm)

Diameter(mm)

selvage wire/mesh wire/tie wire

2x1x1

2x1x0.5

8x10

10x12

3.4/2.7/2.2

3.9/3.0/2.2

3.9/2.7/2.2

3x1x1

3x1x0.5
4x1x1

PVC coated gabion box
Size(m) Mesh size(cm)

Before PVC Diameter(mm)

selvage wire/mesh wire/tie wire

After PVC Diameter(mm)

selvage wire/main wire/tie wire

2x1x1

2x1x0.5

8x10

10x12

 3.4/2.7/2.2 4.4/3.7/3.2

6×2×0.3m Green PVC Coated Gabion Baskets 0.15m Height

Packing and transportion:

6×2×0.3m Green PVC Coated Gabion Baskets 0.15m Height

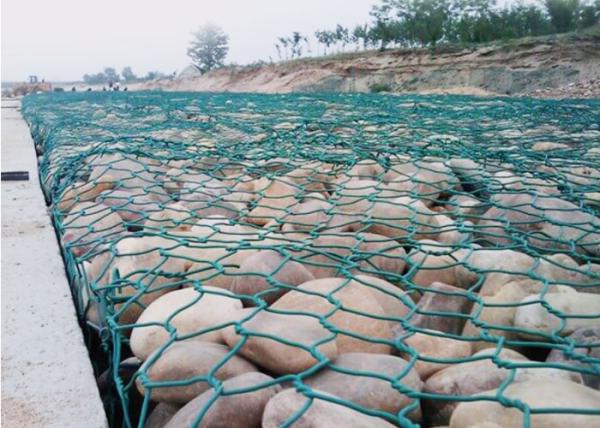

Applications:

6×2×0.3m Green PVC Coated Gabion Baskets 0.15m Height
