Galvanized Barbed Wire Introduction:
Barbed wire, also called barb wire, is a type of steel fencing wire constructed with sharp edges or points arranged at intervals along the strands. Due to the high security and lower cost, barbed wire is now widely used as a security barrier. According to different surface treatment, It plays the role of protection in mines,gardens and apartments,frontier,defence,and enclosure of prisons.
Barbed wire can be divided into single strand barbed wire and double strand barbed wire.
* Single strand barbed wire. It has the simplest structure, which contains single strand and barbs. Compared with the double strand barbed wires, it is much more economical and lighter weight. It is suitable for the common applications. But it is easy to destroy and cut, so it is not suitable for heavy duty applications.
* Double strand barbed wire. It is formed with two strand wires (line wires). The barbs are twisted between of the two wires and fastened onto the line wire. The double strand barbed wire can supply higher tensile strength to prevent cutting or destroying. It is suitable for the heavy duty applications, such as prisons, military sites and other places.
1) Sharp edge frightens intruders and thieves.
2) High stability, rigidity, and tensile strength to prevent cutting or destroying.
3) Anti-acid and alkali.
4) Harsh environment resistance.
5) Corrosion and rust resistance.
6) Available to combine with other fences for high level security barrier.
7) Convenient installation and uninstallation.
8) Easy to maintain.
9) Durable and long service life.
Galvanized barbed wire specifications:
Gauge of | Approximate Length per Kilo in Meter | |||
Strand and Barb in B.W.G. | Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" |
12x12 | 6.0617 | 6.759 | 7.27 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.719 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.562 |
13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.659 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.507 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.406 | 19.3386 |
Barbed distance :7.5-15/cm Barbed length:1.5-3/cm |

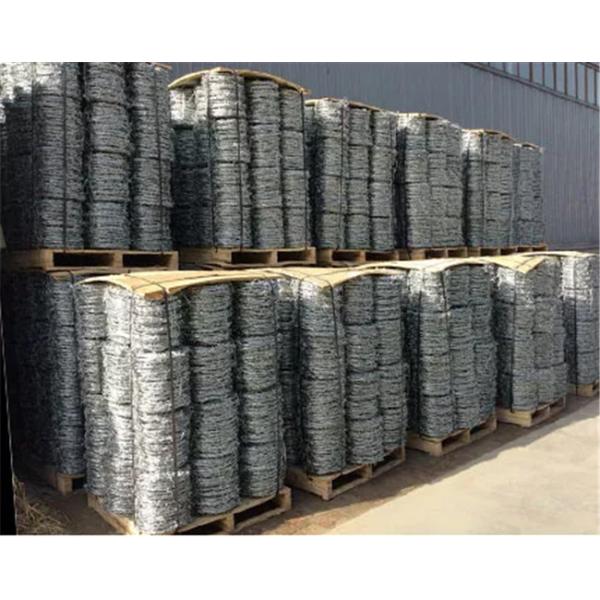

Packing method of barbed wire:
The barbed wire is commonly supplied in rolls. And there are so many barbs on the roll surface. For convenient loading, handling and transporting, we are equipped different handles for your choice. Additional, it is very safe for manual operation and will not hurt people when using it.
* Steel wire roller and steel wire handle.
* Steel wire roller and plastic handle.
* Steel wire roller and wooden handle.
* Wooden roller and rope handle.
Inside waterproof paper ,outside woven bag for barbed wire,Or according to your requirements
