Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel
Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel
Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel
Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel
Specifications
Brand Name :
HBGB
Model Number :
GB-006
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 pcs per day
Delivery Time :
15-25 days
Packaging Details :
Steel Pallet or customized
Product namee :
Hot-Dipped Galvanized Steel Bar Grating
Model number :
HBGB 20,30,100
Surface treatment :
hot dipped galvanized
Zinc coating :
more than 400g/m2
Cross Bar Size :
6 mm, 8 mm, 10 mm
Bearing bar :
25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm etc
Usual pitch :
41mm x100mm & 30mm x100mm
Special pitch :
41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm, 34mm x 100mm, 34mmx50mm,34mm x 38mm
Advantages :
Anti-corrosion,anti-slip,durable,ventilate
Application :
metal building material,fences,ditch cover,steel ladder,stair tread
Description

Rain Water Drain Grill Hot-Dipped Galvanized Serrated Bar Grating

Walkway steel grating introduction:

Steel Grating made by welding with flat steel and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.

Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel

The advantages, specific application and features of Galvanized serrated bar grating:

Steel grating has light weight, good strength, large carrying capacity and can save materials and cost. It offers good ventilation of light and wind, a modern sense, aesthetic appearance and anti-skid safety. It is also easy to clean, easy to install and durable for uses.

Production Process of Galvanized serrated bar grating:

1. Steel flat bar 2. Twist bar 3. Punching 4. Welding 5. Acid picking 6. Galvanizing 7. Inspecting 8. packing 9. delivering

Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel

Galvanized serrated bar grating surface specifications​:

Product Name Serrated Steel Grating
Material Low Carbon Steel/Stainless Steel
Grade CN:Q235,Q345, US:A36,UK:43A
Standard CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Color Silver/Black
Application petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

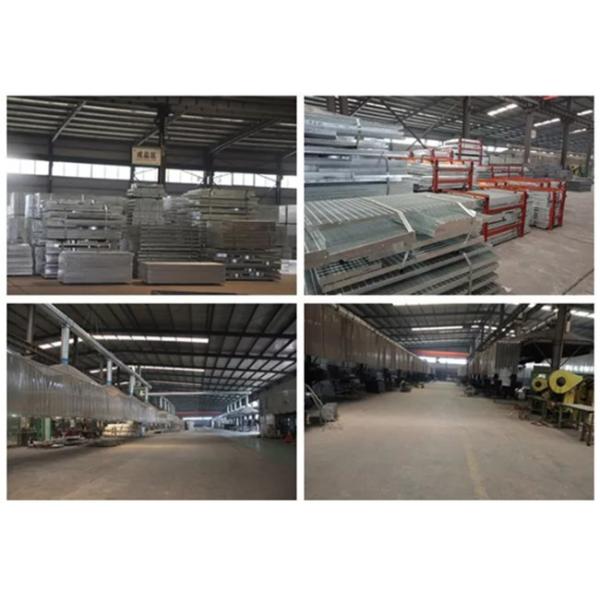

Pictures of workshop:

Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel

Applications of galvanized serrated steel bar grating:

* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads

Rain Water Drain Grill Galvanized Serrated Bar Grating Hot Dipped Steel
