4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved
4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved
4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved
4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved
Specifications
Brand Name :
HBGB
Model Number :
GB-008
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000pcs per day
Delivery Time :
10-20days
Packaging Details :
in bundle, by pallet, wooden case or customized
Product name :
3d curved fence panel
Raw material :
galvanized iron wire or black iron wire
Finishing :
PVC coated or hot dipped galvanized
Color :
Any RAL series color (RAL 6005-Dark Green is most popular).
Wire diameter :
4mm,5mm,as your requirements
Hole size :
50*150mm
Height :
0.6-3m
Length :
2-3m
Usage :
Garden Fence, Highway Fence
Feature :
Easily Assembled, ECO FRIENDLY
Description

Green Color Pvc Coated Curved Type Welded Wire Mesh Fencing Panels

Curved Welded Wire Mesh Fence Panels Details:

3D fence panels an economical version of the panel system, constructed from a Welded Wire Fence with longitudinal profiles that forms a rigid fence.Due to its simple structure ,easy installation and nice appearance,more and more customers regard this product as the preferred common protective fence.

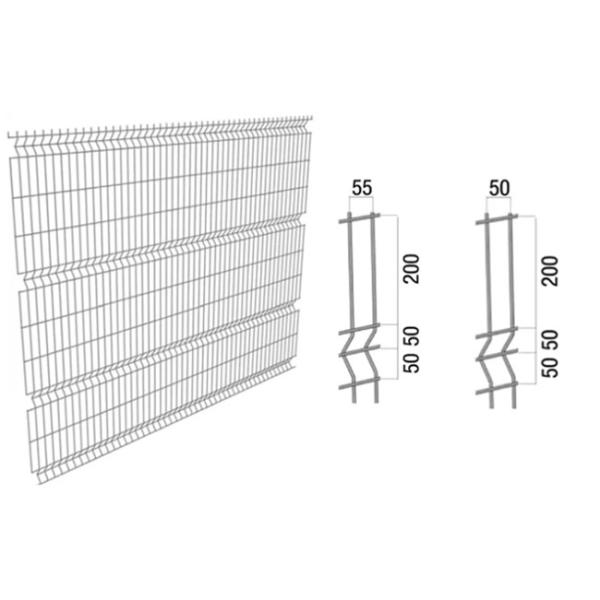

Drawing of 3d curved fence panel:

4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved

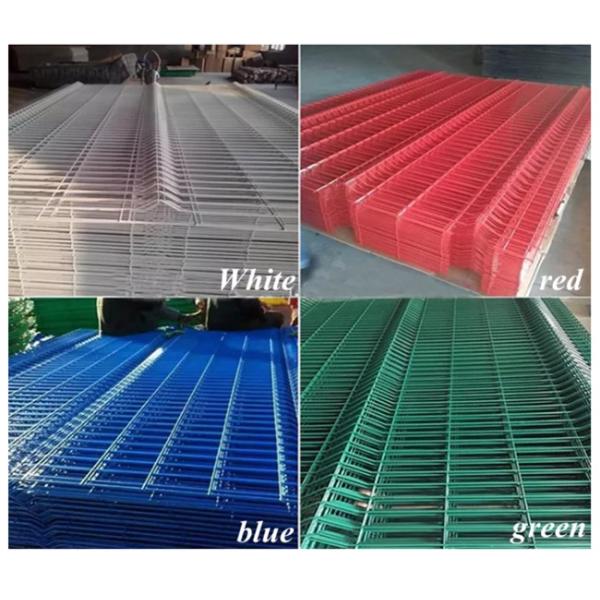

Available Colors of Curved Welded Wire Mesh Fence Panels:

Any RAL series color (RAL 6005-Dark Green is most popular).

4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved

Fence Post of Curved Welded Wire Mesh Panels:

The panels are secured laterally on the posts with specialized fixing made out of metal (security clips). The square posts (50x50mm, or 60X60mm) are covered with a plastic cap. Specifications can be customized.

Welded Wire Mesh Specification:

Mesh Panel

 Panel Height 600-3000mm
Panel Width 2000-3000mm
Wire Thickness 3-6mm
Mesh 50x150mm,50×200mm,50×100mm,55×200mm,55×100mm
Material Q195
Surface Treatment Pre galvanized or hot dipped galvanized,powder coating or PVC coated after welding.
Folds NO. 2,3,4(according to the height)

Fence Posts

 Peach Posts

Profile:50×70mm,60×90mm,70×100mm

Wall Thickness:1.2mm,1.5mm
Square Tube

Profile:50×50mm,60×60mm

Wall Thickness 1.5mm-4.0mm
Rectangle Tube

Profile:60×40mm,80×40mm

Wall Thickness:1.5mm-4.0mm
Round Pipe

Profile:φ48,φ60,φ75

Wall Thickness:1.5-3.2mm
Post Height According to fence panel height(Normal 0.65-4m)
Finish Galvanized and Electrostatic polyester powder coated
Accessories post cap, clamps, bolts and nuts,etc.
Fence Color Dark green(RAL6005),other RAL colors,also available as requests,uv available.

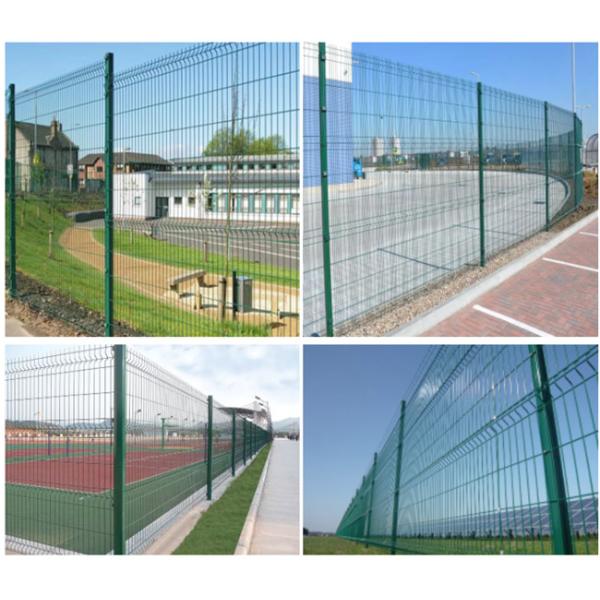

Application of curved welded wire mesh fence:

The welded mesh fencing can be used for gardens, factory, road , highway, public buildings , parks, government buildings, ball court, industry & commercial sector.

4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved
