Galvanized Steel 3d Welded Wire Mesh Panels For Farm Fence And Household Cage
Galvanized Steel 3d Welded Wire Mesh Panels For Farm Fence And Household Cage
Galvanized Steel 3d Welded Wire Mesh Panels For Farm Fence And Household Cage
Galvanized Steel 3d Welded Wire Mesh Panels For Farm Fence And Household Cage
Specifications
Brand Name :
HBGB
Model Number :
GB-008
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000pcs per day
Delivery Time :
10-20days
Packaging Details :
in bundle, by pallet, wooden case or customized
Product name :
Welded Wire Mesh Panels
Raw material :
low carbon steel wire 195, SS wire
Surface finishing :
Galvanized, PVC coated
Hole shape :
square or rectangle
Wire gauge :
1-8 mm
Hole size :
25mmx25mm-150mmx150mm
Panel width :
0.3m-3m
Panel length :
customized
Application :
construction panel, or fence panel, cage
Processing service :
Welding, Cutting
Description

Galvanized Steel Wire Welded Mesh Panels For Farm Fence And Household Cage

Welded Wire Mesh Panels Introduction:

Welded wire mesh panel is a mesh made of high-quality low-carbon steel wire that has been straightened and cut and then welded by electric welding equipment. Welded wire mesh panel is widely used because of its simple structure, fast production, beautiful and practical, and easy to transport.

Galvanized Steel 3d Welded Wire Mesh Panels For Farm Fence And Household Cage

Welded Wire Mesh Panels Variety:

Hot dipped galvanized after welding, Welding with hot dipped galvanized iron wire Electro galvanized after welding, Welding with electro galvanized iron wire PVC coated welded wire mesh.

Size of Welded Wire Mesh Features:

* Smooth mesh surface and bright luster
* Well-proportioned meshes
* Strong welded points
* High solid structure
* Corrosion-resisting
* Oxidation-resisting

Welded Wire Mesh Specification:

Specification
Opening Wire Diameter
Inch metric Unit(mm)
1"x1" 25mmx25mm 2.5mm,2.0mm,1.8mm,1.6mm
2"x2" 50mmx50mm 2.5mm,2.0mm,1.8mm,1.6mm
2"x3" 50mmx70mm 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4" 50mmx100mm 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6" 50mmx150mm 6.0mm,5.0mm,4.0mm,3.0mm
2"x8" 50mmx200mm 6.0mm,5.0mm,4.0mm,3.0mm
3"x3" 75mmx75mm 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4" 75mmx100mm 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4" 100mmx100mm 6.0mm,5.0mm,4.0mm,3.0mm
5"x5" 125mmx125mm 6.0mm,5.0mm,4.0mm,3.0mm
6"x6" 150mmx150mm 6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:

1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m

2.Special size available at request

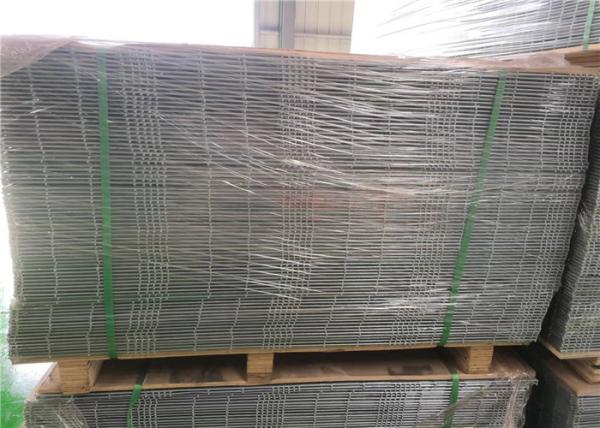

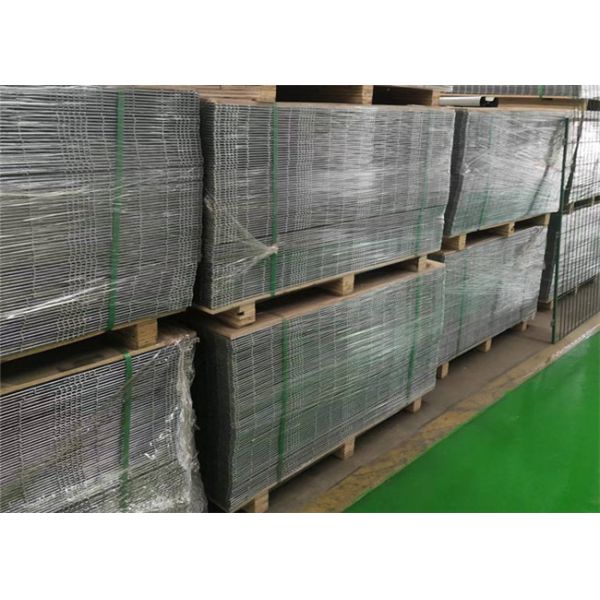

Packing:

Galvanized Steel 3d Welded Wire Mesh Panels For Farm Fence And Household Cage

Application of welded wire mesh panels:

* In field concretes
* Concrete runway
* In highway construction
* In viaducts.
* In Prefabricated Building Elements
* In mass housing with tunnel formwork system.
* Tunnel and Metro construction
* In various constructions of industrial buildings.
* On decks and retaining walls of reinforced concrete structures.
* In Reinforced Concrete Pipes
* As a security fence
* Gabion systems
* For decorative purposes.
* In floor coverings
* In curtain concrete and retaining wall construction
* In columns, columns and beams
* In water structures, dams, canals and flumes
* Apart from these, it is used in garden walls, balustrades and suspended ceilings

Galvanized Steel 3d Welded Wire Mesh Panels For Farm Fence And Household Cage
