Commercial Galvanized 8mm Expanded Metal Wire Mesh For Walkways Cabinet Inserts
Commercial Galvanized 8mm Expanded Metal Wire Mesh For Walkways Cabinet Inserts
Commercial Galvanized 8mm Expanded Metal Wire Mesh For Walkways Cabinet Inserts
Commercial Galvanized 8mm Expanded Metal Wire Mesh For Walkways Cabinet Inserts
Specifications
Brand Name :
HBGB
Model Number :
GB-0091
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs or rolls per day
Delivery Time :
10-20 days
Packaging Details :
on pallet or wooden case, or as customer's requirement
Product name :
Expanded Metal Wire Mesh
Material :
low carton steel, stainless steel, aluminum sheet
Hole shape :
Diamond Shape
Hole size :
1X2mm, 2x3mm, 3X6mm, 4X8mm, etc
Processing Service :
cutting,punching
sample :
available
Shape :
panel or roll
Thickness :
0.3mm-8mm
Color :
Silver,Black, colorful
Application :
Fence/Construction
Description

Commercial Galvanized Expanded Metal Mesh For Walkways Cabinet Inserts

Expanded wire mesh Introduction

Expanded Metal is a highly adaptable material. It is lighter per cubic metre and stronger per kilogram than the metal sheet from which it is made.

There is no interweaving, interslotting, brazing, or welding with expanded metal. In other words, even when cut into irregular shapes and left unframed, there is nothing to come loose or fray as a result of vibration or heavy impact.

Expanded metal has excellent corrosion resistance because it has no welds or interwoven strands.
The knuckles formed by the cutting and expanding process are stronger and more resistant to stress than joints or welds.

It allows air circulation without compromising strength or security when used as container sides or inserts.

Expanded metal wire mesh types:

Pre-Galvanized Expanded Mesh (Roll / Sheet)
① Material:
* Stainless expanded metal
* Carbon steel expanded metal
* Aluminum expanded metal
②Surface Treatment:
Nothing Coated on the surface
③Color:
Black / Sliver

Galvanized Expanded Mesh (Roll / Sheet)
① Material:
* Stainless expanded metal
* Carbon steel expanded metal
* Galvanized expanded metal
* Aluminum expanded metal
②Surface Treatment:
Electro Galvanized Expanded Mesh | Hot-dipped Galvanized Expanded Mesh (High amount of Zinc Coated)
③Color:
Sliver

PVC Coated Expanded Mesh (Roll / Sheet)
① Material:
* Stainless expanded metal
* Carbon steel expanded metal
* Galvanized expanded metal
* Aluminum expanded metal
②Surface Treatment:
Colorful Powder Coated
③Color:
Green / Black / Red / Yellow / Brown / Blue

Specifications of expanded metal mesh

Tickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width(m) Length(m) Weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5

Expanded Metal Process Flow

  1. Material
  2. Punching
  3. Flattenedl
  4. Make level
  5. Surface treat
  6. Inspection
  7. End product
  8. Packaget
  9. Loading

Commercial Galvanized 8mm Expanded Metal Wire Mesh For Walkways Cabinet Inserts

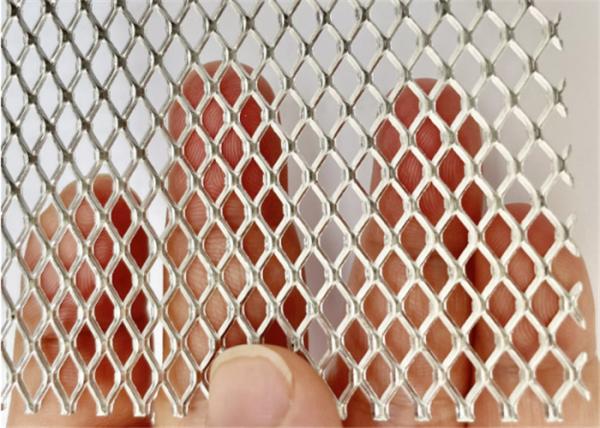

Pictures of product:

Commercial Galvanized 8mm Expanded Metal Wire Mesh For Walkways Cabinet Inserts

Commercial Galvanized 8mm Expanded Metal Wire Mesh For Walkways Cabinet Inserts
