6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering
6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering
6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering
6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering
Specifications
Brand Name :
HBGB
Model Number :
GB-0091
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs or rolls per day
Delivery Time :
10-20 days
Packaging Details :
on pallet or wooden case, or as customer's requirement
Product name :
Aluminum Expanded Metal Mesh
Raw material :
Aluminum sheet
Technique :
Perforated, stretching
Hole shape :
diamond or custom made
Thickness :
0.3 - 6 mm
Certificate :
ISO 9001
Surface treatment :
Powder Spraying
Color :
various colors
Feature :
decorative, light, Corrosion Resistance
Application :
interior decoration, Office Building
Description

Architectural Decorative Aluminum Expanded Metal Mesh Sheet For Curtain Wall Covering

Common Details of Expanded wire mesh:

  1. Materials: mild steel, stainless steel, aluminum; precious materials such as brass, copper, titanium and platinum are also available.
  2. Surface treatment: galvanizing, painting, powder coating, polishing, anodizing, etc.
  3. Hole patterns: diamond, hexagonal and customized patterns against order.
  4. Sheet width; 2'- 8'
  5. Sheet length: 2'- 10'


Properties of the aluminum expanded mesh:

  • Openings permit free flow of light, heat, sound & air.
  • It won't unravel when cut, unlike woven wire mesh.
  • Available in a variety of mesh configurations and decorative patterns.
  • A wide range of colours and openings.
  • Cost effective and environmentally friendly.
  • Raised surface is slip resistance and also ideal for walkways.
  • Light weight is ideal for outer wall hanging.
  • Durability and low maintenance.


6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering

Specifications of expanded metal mesh:

Specification
Sheet Thickness
Opening in Width
mm
Opening in Length
mm
Stem
Roll Width
m
Roll Length
m
Weight
kg/m²
0.5
2.5
4.5
0.5
0.5
1
1.8
0.5
10
25
0.5
0.6
2
0.73
0.6
10
125
1
0.6
2
1
0.8
10
25
1
0.6
2
1.25
1
10
25
1.1
0.6
2
1.77
1
15
40
1.5
2
4
1.85
1.2
10
25
1.1
2
4
2.21
1.2
15
40
1.5
2
4
2.3
1.5
15
40
1.5
1.8
4
2.77
1.5
23
60
2.6
2
3.6
2.77
2
18
50
2.1
2
4
3.69
2
22
60
2.6
2
4
3.69
3
40
80
3.8
2
4
5.00
4
50
100
4
2
2
11.15
4.5
50
100
5
2
2.7
11.15
5
50
100
5
1.4
2.6
12.39
6
50
100
6
2
2.5
17.35
8
50
100
5
2
2.1
28.26

Expanded Metal Wire Mesh Applications:

The versatility of expanded metal makes it have countless applications in architectural, commercial, industrial, bullding and other industries, ideal decorative applications include:
●Cladding
●Balustrades
●Room decoration
●Patio furniture
●Fencing
●Interior partitions
●Infill panels
●Machine guards
●Sun screening
●Exhibition stand
●Air intake screens
●Ceilings
●Transportation shelters

●Speaker grilles



6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering

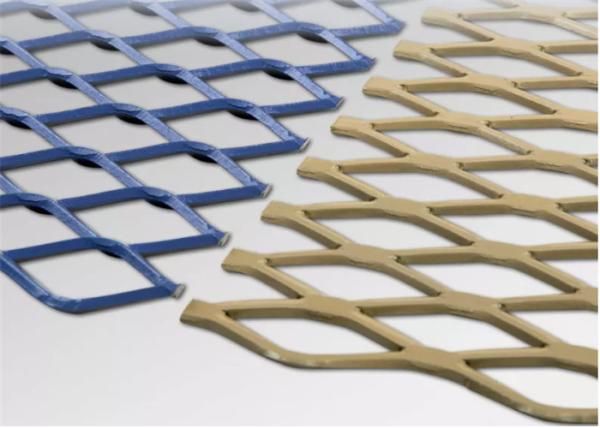

Pictures of product:

6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering

6mm Architectural Decorative Aluminium Diamond Mesh Sheet For Curtain Wall Covering
