Fiberglass Self-adhesive Mesh Tape is a self adhesive, high tensile strength tape. Special adhesive coating allows drywall tape to outperform other joint sealing methods, particularly in areas of high humidity. Perfect for joints, cracks, and holes on a variety of surfaces including smooth and unevenly coated surfaces. Widely used in gypsum board, cement board, drywall and EPS joint and reinforcement.
Connecting gypsum board, particle board, hardboard and other sheet materials.
Gluing joints of door and window frames to the walls.
Sizing of cracks, corners and joints in concrete, plaster surfaces.
For continuous reinforcement of walls and ceilings.
· Good chemical stability. Alkali resistance, acid resistance, water resistance, cement erosion and other
chemical corrosion;And resin bond strong, soluble in styrene and so on.
· High strength, high modulus and light weight.
· Better dimension stability, hard, flat, not easy to contract deformation and positioning.
· Good impact resistance. (due to its high strength and toughness)
· Anti-mildew and insect repellence.
· Fire, heat preservation, sound insulation and insulation.
Specification | Yarn(reference) | Mesh size(mm) | weight(g/m2) | Tensile strength N5X20cm | |||
Warp | Weft | Warp | Weft | Warp | Weft | ||
LR5X5-70 | 45*2 | 200 | 5 | 5 | 70 | 550 | 850 |
LR 5X5-75 | 45*2 | 200 | 5 | 5 | 75 | 600 | 650 |
LR 5X5-80 | 67*2 | 200 | 5 | 5 | 80 | 700 | 850 |
LR 5X5-90 | 67*2 | 250 | 5 | 5 | 90 | 700 | 1050 |
LR 5X5-125 | 134*2 | 250 | 5 | 5 | 125 | 1200 | 1300 |
LR4X4-75 | 48*2 | 200 | 4 | 4 | 75 | 700 | 850 |
LR4X4-90 | 67*2 | 200 | 4 | 4 | 90 | 950 | 1100 |
LR4X4-145 | 134*2 | 240 | 4 | 4 | 145 | 1500 | 1500 |
LR 4X4-160 | 134*2 | 300 | 4 | 4 | 160 | 1500 | 1650 |

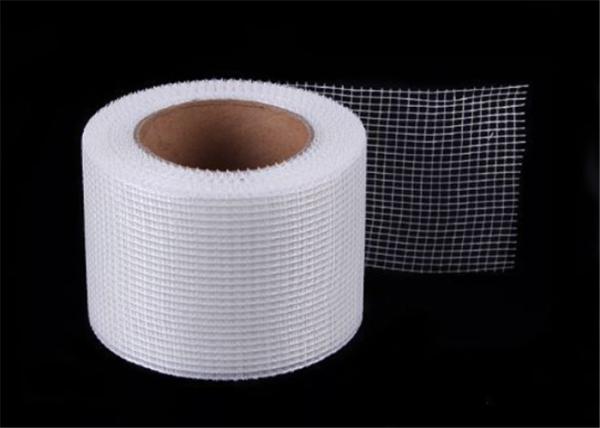

Product pictures:
Loading:
