Triple Twisted 80x100mm Gabion Mesh Baskets Rock Stone River Bank Protection
Triple Twisted 80x100mm Gabion Mesh Baskets Rock Stone River Bank Protection
Triple Twisted 80x100mm Gabion Mesh Baskets Rock Stone River Bank Protection
Triple Twisted 80x100mm Gabion Mesh Baskets Rock Stone River Bank Protection
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion mesh basket
Raw Material :
pvc coated iron wire; galvanized iron wire
Processing Service: :
weaving, packing
Hole shape :
hexagonal shape
Net wire diameter :
customized
Opening :
80x100mm,100mmx120mm
Length :
2, 3,4,5,6 m
Usage :
gabion mattress for river band and slope protection
Feature :
Anti-corrosion, flood protective,river bank protection
Packing :
in bundle
Description

Triple Twisted Rock Stone River Bank Protection Gabion Wire Mesh Basket

Gabion Mesh Basket Introduction:

Gabions are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable, monolithic structures,such as retaining walls for commercial, industrial and road projects. They are also used for erosion control, bank stabilization,channel linings and weirs.

Triple Twisted 80x100mm Gabion Mesh Baskets Rock Stone River Bank Protection

Gabion Mesh Basket Details:

Aperture
6x8 8x10 10x12 12x15 cm
Mesh Wire diameter(SWG)
8- 12 -14 Gauge
Selvedge wire(SWG)
8- 11 -13 Gauge
Lacing wire(SWG)
Commonly 13 Gauge
Color
Darkgreen, gray ,black , etc.
Material
Galvanized wire ,galfan wire and PVC coated wire
Common size
2m x 6m x0.23m,
2m x 4m x 0.23m,
2m x 3m x 0.23m
Weight
1.57kg/m2
Packing

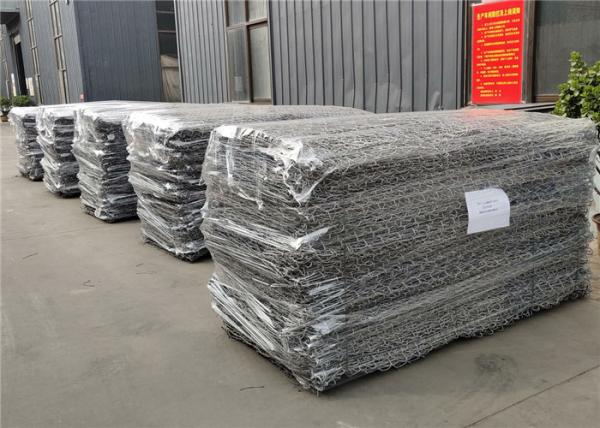

1. compacted before packaging.
2. Plastic packaging outside and on the pallet.
3. 20'container can contain more than 8,000 square meters.
40' container can contain more than 15,000 square meters
Feature
Strong structure and corrosion-resistance to protect the dam and riverbank
Application
Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge prot

Surface Treatment of Gabion Mesh Basket:


a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 300g/m2
b. PVC Coated Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the
resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in
the manufacturing process.
c. Galfan, 95% zinc, 5% aluminum

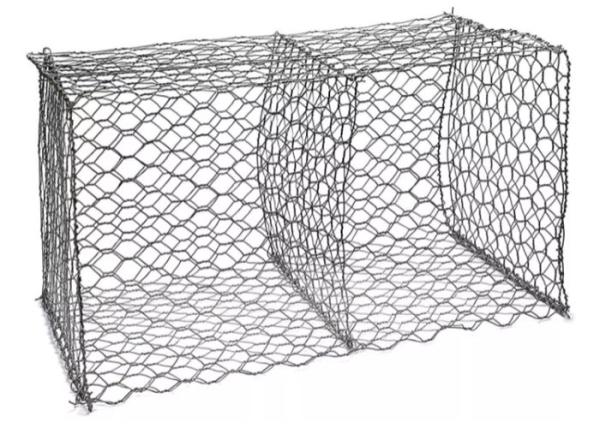

Picture of Gabion mesh basket:

Triple Twisted 80x100mm Gabion Mesh Baskets Rock Stone River Bank Protection

Applications:

Gabion Mesh Basket is used for river bank and scour protection, bridge and weir protection, channel linings and erosion control. It is also widely used for the embankment stability.
The woven gabion mattress can be used in the differential settlement applications and the welded gabion mattress can be used in the landscape constructions.

Triple Twisted 80x100mm Gabion Mesh Baskets Rock Stone River Bank Protection
