4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel
4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel
4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel
4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion Mesh Basket
Material :
iron wire Q195
Surface treatment :
heavy zinc
zinc coating :
more than 270g/m2
Color :
Silver
Net wire :
2 - 4 mm
Lacing wire diameter :
2.0mm, 2.2mm, etc
SSelvedge wire: :
3.4mm, 3.8mm, etc
Mesh size :
60x80mm,80x100mm,90x110mm
Basket size :
1*1*1m,2*1*1m,3*1*1m4*2*0.3m, 6*2*0.3m,etc
Description

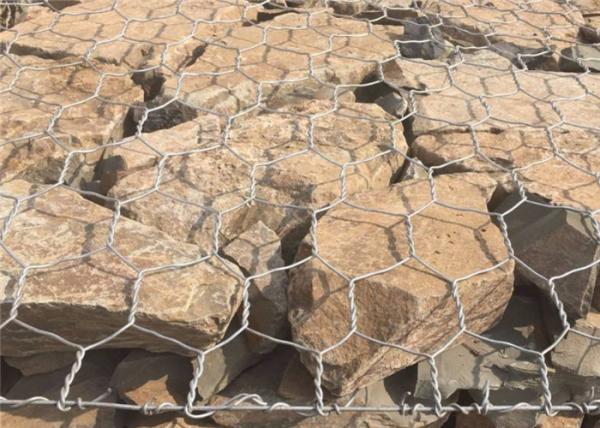

Hot Dipped Galvanized Iron Steel Gabion Stone Cage For Gabion Mesh Basket

Gabion Mesh Basket Description:

Hexagonal woven gabion mesh basket is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanising process using a zinc/aluminium/mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel

Gabion mesh basket specifications:

Length(m)
Width(m)
Width(m)
Diaphragm quantity
1
1
1
0
2
1
1
1
3
1
1
2
4
1
1
3
2
1
0.5
1
3
1
0.5
2
1.5
1
1
1
1.5
1
0.5
1

Mesh size
(PVC wire)Inner/outside
Hot-dip galvanized
Galfan
60*80
2.0mm/3.0mm-2.8mm/3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100
2.2mm/3.2mm-3.0mm/4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120
2.4mm/3.4mm-3.2mm/4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150
2.7mm/3.7mm-3.5mm/4.5mm
3.7mm-4.5mm
3.7mm-4.5mm

Gabion Mesh Basket Features:

• Uniform wire coating for extra durability

• Flexible & permeable structure

• Tolerates differential settlement

• Easy to install

• No special labour is required for installation

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel

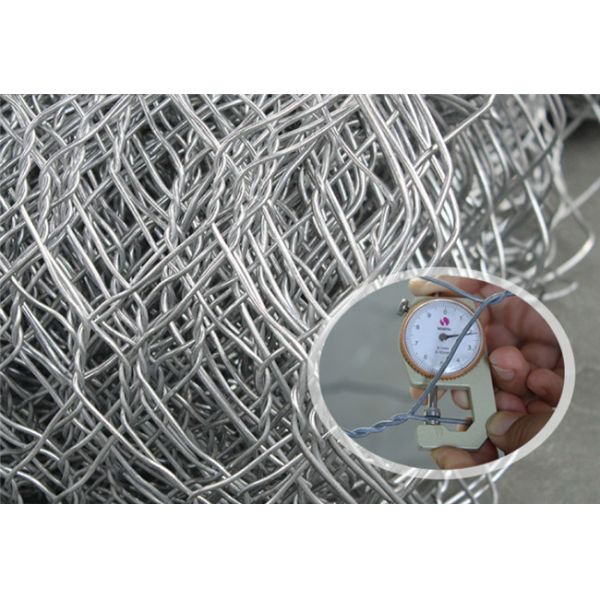

Process of production:

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel

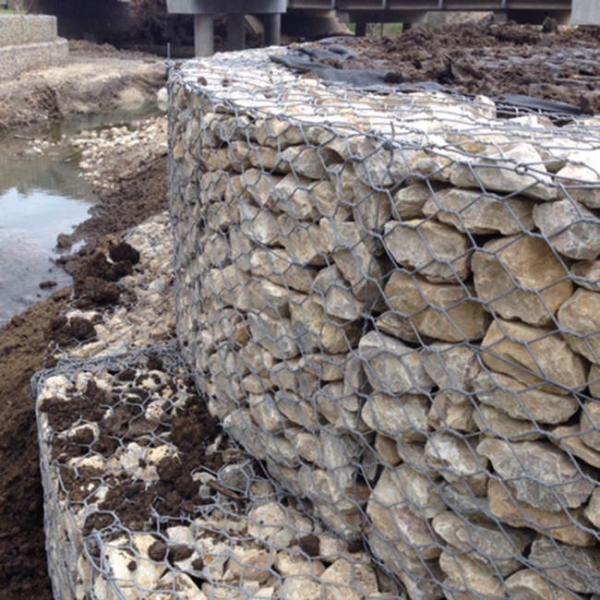

Application:

Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Stengthening structure of soil

Protection engineering of seaside area

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel
