4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall
4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall
4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall
4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion Mesh Basket
Surface treatment :
hot dipped galvanized, PE coated, galfan
Basket color :
Dark green , gray , silvery
process method :
woven by machine
Hole shape :
hexagonal
Aperture :
80x100mm
Basket size :
2x1x0.5m,2x1x1m,3x1x0.5m,4x1x0.2m
Net wire :
2.7mm standard
Tie wire :
2.2 mm
selvage wire :
4 mm
Description

4x2x0.3 ZnAl Coated Iron Wire Mesh Retaining Wall Gabion Mesh Basket

Gabion Mesh Basket Description:

It is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanising process using a zinc/aluminium/mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.

4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall

Gabion Mesh Basket Features:

1. economy. Just put the stone into the cage and seal it.
2. The construction is simple without special technology.
3. It has a strong ability to resist natural damage, corrosion resistance and adverse climate impact.
4. It can withstand large-scale deformation without collapse.
5. The silt between the stone gaps of the cage is conducive to plant production and can be melted into one with the surrounding natural environment.
6. It has good permeability and can prevent damage caused by hydrostatic force. Conducive to the stability of hillside and beach
7. Save transportation cost, fold it up for transportation and assemble it on the construction site. 8. Good flexibility: no structural joint, the overall structure has ductility.
9. Corrosion resistance : galvanized materials are not afraid of seawater.
10. Environmental protection materials: cadmium (CD) < 10ppm, lead (PB) < 50ppm,
other harmful substances such as mercury (Hg), hexavalent chromium (Cr6 +), PBB and PBDE are not detected, which fully meet the environmental protection standards of Rosh.

Gabion Mesh Basket Usage:

Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge prot

Gabion Mesh Basket Specifications:

Aperture
6x8 8x10 10x12 12x15 cm
Mesh Wire diameter(SWG)
8- 12 -14 Gauge
Selvedge wire(SWG)
8- 11 -13 Gauge
Lacing wire(SWG)
Commonly 13 Gauge
Color
Darkgreen, gray ,black , etc.
Material
Galvanized wire ,galfan wire and PVC coated wire
Common size
2m x 6m x0.23m,
2m x 4m x 0.23m,
2m x 3m x 0.23m
Weight
1.57kg/m2
Packing
1. compacted before packaging.
2. Plastic packaging outside and on the pallet.
3. 20'container can contain more than 8,000 square meters.
40' container can contain more than 15,000 square meters
Feature
Strong structure and corrosion-resistance to protect the dam and riverbank

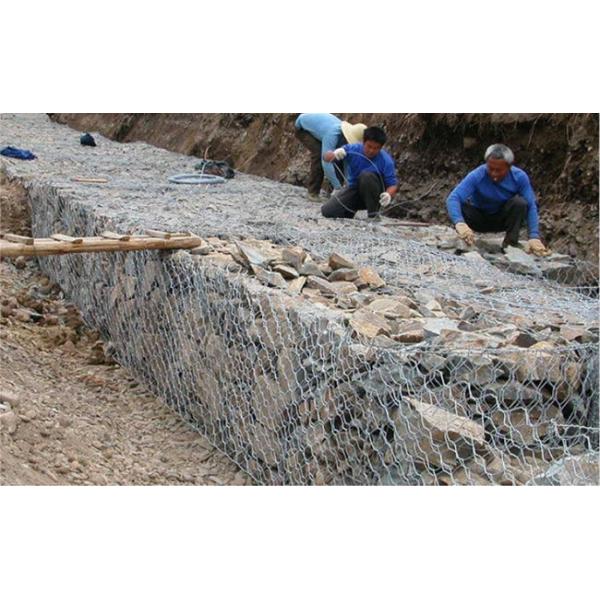

Gabion mesh basket installation:

4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall

Packing & loading pictures:

4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall

Application:

4x2x0.3 Hexagonal Hole Galfan Gabion Box Znal Coated Iron Wire Mesh Retaining Wall

Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge prot
