4mm Diameter 2.0x1.0x0.5 Welded Gabion Mesh Baskets Anti Erosion
4mm Diameter 2.0x1.0x0.5 Welded Gabion Mesh Baskets Anti Erosion
4mm Diameter 2.0x1.0x0.5 Welded Gabion Mesh Baskets Anti Erosion
4mm Diameter 2.0x1.0x0.5 Welded Gabion Mesh Baskets Anti Erosion
Specifications
Brand Name :
HBGB
Model Number :
GB-001
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50sets
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per day
Delivery Time :
10-20 days
Packaging Details :
bulk or in bundle, or on pallet
Product name :
welded gabion basket
Material :
iron 195 wire
Finishing :
galfan surface treatment
Hole shape :
square
wire diameter :
3.5mm, 3.8mm, 4mm, 4.5mm
aperture :
50x50mm, 75x75mm, 75x100mm and etc
length :
1M,2M,3M,4M
Feature :
anti-corrosion
Packing :
customized
Sample :
available
Description

Anti-corrosion Galfan coated metal steel welded gabion mesh box

welded gabion mesh introduction:

"Welded Gabion box", "welded gabion basket", "welded galvanized gabion baskets" are high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures.

Welded gabion mesh install:

Field installation is quick and easy. With diaphrams and stiffeners installed, the gabion may be filled with standard loading equipment. After filling the gabion, a lid is placed on top and secured with spiral binders, lacing wire or "C" rings. Welded Wire Gabions hold their shape better - they don't bulge out when filled. They are easy to handle, which means more work, less labor and higher productivity on the job.

welded gabion mesh features:


1. Strong anti-erosion ability
2.security and stability
3.Construction is simple, ecological stone cage cage process just stone into the cage can be sealed, do not need special technology, do not need water and electricity
4.Good landscape and protection effect
5.Long service life, ecological stone cage net process life for decades, and generally do not need maintenance

welded gabion mesh cage dimensions:

Manufacture Stone Galvanized Gabion Welded Fence Mesh Box For Wall

Nominal Box sizes (m) Mesh size (mm) No. of diaphragms (no.) Capacity per box (m3)
1.0x1.0x0.5

50x50

75x75

50x100

100x100

 0 0.50
1.0x1.0x1.0 0 1.00
1.5x1.0x0.5 0 0.75
1.5x1.0x1.0 0 1.50
2.0x1.0x0.5 1 1.00
2.0x1.0x1.0 1 2.00
3.0x1.0x0.5 2 1.50
3.0x1.0x1.0 2 3.00
4.0x1.0x0.5 3 2.00
4.0x1.0x1.0 3 4.00

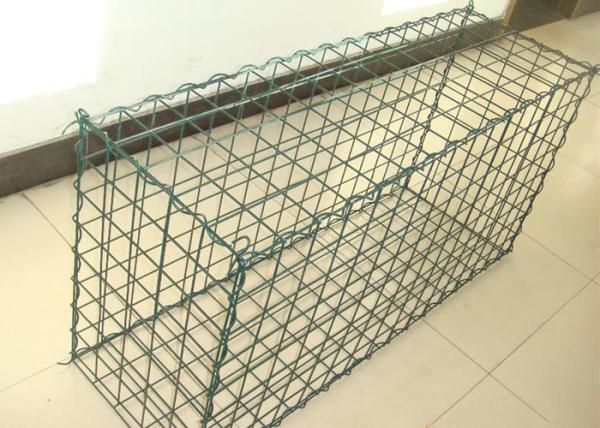

Pictures of welded gabion box:

4mm Diameter 2.0x1.0x0.5 Welded Gabion Mesh Baskets Anti Erosion

acking and loading pictures of welded gabion mesh:

4mm Diameter 2.0x1.0x0.5 Welded Gabion Mesh Baskets Anti Erosion

Applications:

4mm Diameter 2.0x1.0x0.5 Welded Gabion Mesh Baskets Anti Erosion
