High Tensile Dura Guard Gabion Sea Wall 200*100*100 Welded Wire Retaining Wall
High Tensile Dura Guard Gabion Sea Wall 200*100*100 Welded Wire Retaining Wall
High Tensile Dura Guard Gabion Sea Wall 200*100*100 Welded Wire Retaining Wall
High Tensile Dura Guard Gabion Sea Wall 200*100*100 Welded Wire Retaining Wall
Specifications
Brand Name :
HBGB
Model Number :
GB-001
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50sets
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per day
Delivery Time :
10-20 days
Packaging Details :
bulk or in bundle, or on pallet
Product name :
welded gabion mesh
Material :
galvanized iron wire
Finishing :
galvanized + pvc coated
Hole shape :
rectangle or square
wire diameter :
2.0 - 4.5 mm
aperture :
50x50mm, 75x75mm
width :
0.5M, 1M, 2M
length :
1M,2M,3M,4M
Packing :
bundle then on pallet
Usages :
Gabions, earth control,soil conservation,marine and seawall protection
Description

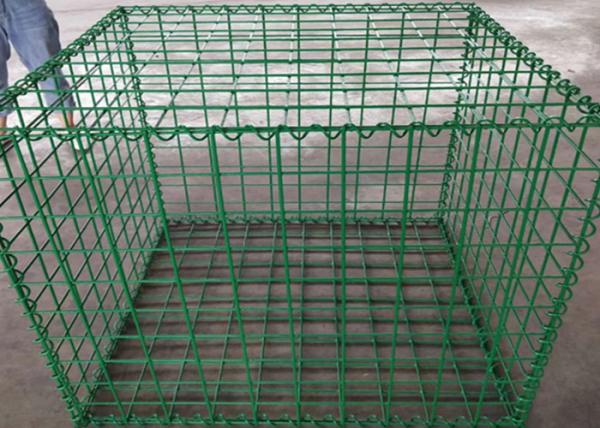

Green color PVC coated welded gabion mesh for seawall protection

welded gabion mesh details:

Welded gabion basket is made of high quality materials with outstanding corrosion resistant coating, which make the welded gabion cage a more stable and longer service life. The wires are welded into sheets and then assembled into cages. The welded gabion cage has a wider range application than the woven gabion cage in our daily life.

Welded gabion mesh install:

Field installation is quick and easy. With diaphrams and stiffeners installed, the gabion may be filled with standard loading equipment. After filling the gabion, a lid is placed on top and secured with spiral binders, lacing wire or "C" rings. Welded Wire Gabions hold their shape better - they don't bulge out when filled. They are easy to handle, which means more work, less labor and higher productivity on the job.

welded gabion mesh features:

1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroys corrosion resistant.
4.No collapse even under big scope of deforming.
5.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6.Good permeation can prevent the damage by hydrostatic.
7.Less transport freight. It can be folded together for transport and further installation.

welded gabion mesh cage dimensions:

Popular Size of Welded Gabion Box
Gabion Cage Size
Wire diameter(mm)
Mesh opening size(mm)
Gabion 100*30*30
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100
Gabion 100*50*30
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100
Gabion 100*80*30
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100
Gabion 100*50*50
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100
Gabion 100*80*50
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100
Gabion 100*100*50
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100
Gabion 100*100*100
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100
Gabion 200*100*100
3.5, 4.0, 4.5, 5.0
50*50, 50*100, 75*75, 100*100

High Tensile Dura Guard Gabion Sea Wall 200*100*100 Welded Wire Retaining Wall

Packing and loading pictures of welded gabion mesh:

High Tensile Dura Guard Gabion Sea Wall 200*100*100 Welded Wire Retaining Wall

Applications:

High Tensile Dura Guard Gabion Sea Wall 200*100*100 Welded Wire Retaining Wall
