16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence
16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence
16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence
16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence
Specifications
Brand Name :
HBGB
Model Number :
GB-0013
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50 rolls
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 rolls per day
Delivery Time :
10 - 20 days
Packaging Details :
1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton
Product name :
Razor barbed wire
Material :
carbon steel
Finishing :
hot dipped galvanized or pvc coated
Types :
BTO-10/22/28/30/,CBT60/65
Blade thickness :
0.3, 0.35, 0.4, 0.45, 0.5 mm
Blade spacing :
25 mm - 100 mm
Razor type :
single razor
Weight of coil :
customized
Length of covering :
customized
Application :
Anti-climb, protection mesh
Description

10 m Single Coils Concertina Hot Dipped Galvanized Razor Barbed Wire

Razor barbed wire description:

It is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

Razor barbed wire Paramenters:

Outside dia
450mm / 500mm / 550mm / 600mm / 650mm / 700mm /750mm / 800mm / 900mm / 950mm / 1000mm
Extension Length
8m ~ 15m
Core wire dia
1.9mm ~ 2.5mm
Blade thickness
0.32mm ~ 0.6mm
Blade type
BTO-10 / BTO-12 / BTO-15 / BTO-22 / BTO-30 / CBT-25 / BTO-30 / CBT-60 / CBT-65

Razor barbed wire Characteristics​:

With beautiful and sharp blades and strong core wire,razor wire has the features of good deterrent effects,nice appearance ,easy installation,economic and practical and other properties

Razor barbed wire specifications:

Concertina Coil Specification
Coil Diameter 300mm 450mm 730mm 730mm 980mm 980mm 1250mm
(12inch) (18inch) (28inch) (36inch) (36inch) (36inch) (50inch)
Recommended Stretch Length 4m 10m 15-20m 10-12m 10-15m 8m 8m
Coil Diameter When Stretched 260mm 400mm 600mm 620mm 820mm 850mm 1150mm
Spiral Turns Per Coil 33 54/55 54/55 54/55 54/55 54/55 54/55
Clips Per Spiral 3 3 3 5 5 7 9

Barbed Tape Wire Specification
Loop Outside Diameter No.Of Loops Standard Length Per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single Coil
500mm 56 12-13M CBT-60.65 Single Coil
700mm 56 13-14M CBT-60.65 Single Coil
960mm 56 14-15M CBT-60.65 Single Coil
450mm 56 8-9M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
500mm 56 9-10M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
600mm 56 10-11M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
600mm 56 8-10M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
700mm 56 10-12M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
800mm 56 11-13M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
900mm 56 12-14M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
960mm 56 13-15M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
980mm 56 14-16M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type

Processing of razor barbed wire:

16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence

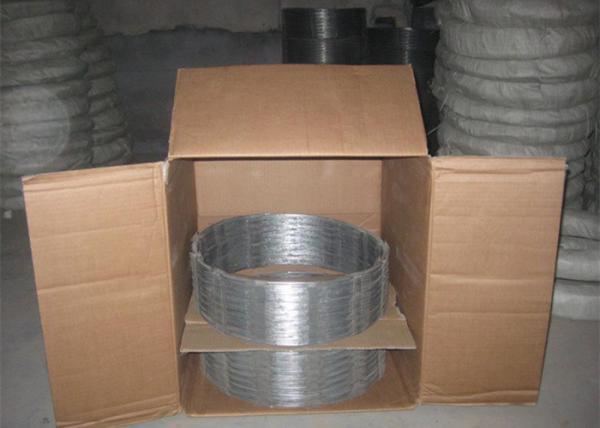

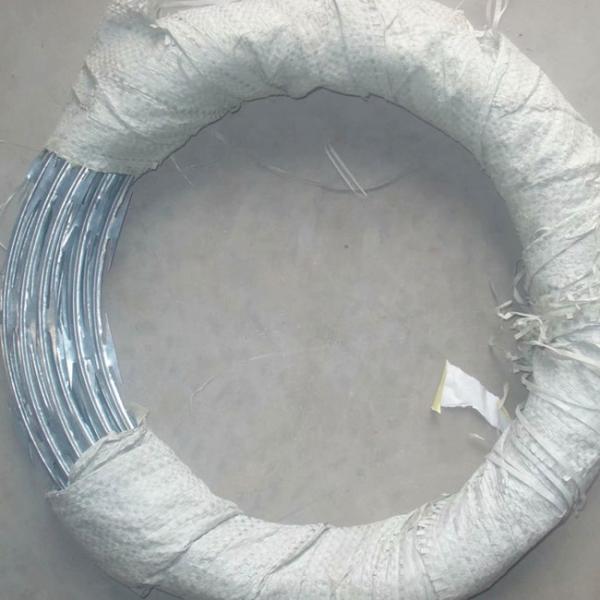

Packing and loading:

16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence
