HBGB 32x5mm Heavy Duty Steel Galvanized Serrated Bar Grating For Floor
HBGB 32x5mm Heavy Duty Steel Galvanized Serrated Bar Grating For Floor
HBGB 32x5mm Heavy Duty Steel Galvanized Serrated Bar Grating For Floor
HBGB 32x5mm Heavy Duty Steel Galvanized Serrated Bar Grating For Floor
Specifications
Brand Name :
HBGB
Model Number :
GB-006
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 pcs per day
Delivery Time :
15-25 days
Packaging Details :
Steel Pallet or customized
Product namee :
Galvanized Serrated Bar Grating
Material :
Carbon steel
Grating type :
Serrated type
Surface treatment :
galvanized
Color :
Silver
Cross Bar Size :
6 mm, 8 mm, 10 mm
Usage :
Anti-Slip Places
Bearing bar size :
20 x 5 , 25 x 3, 25 x 4, 25 x 5, 30 x 3, 30 x 5 mm
Cross bar pitch :
40, 50, 60, 65, 76, 100 mm and etc
Sample :
available
Description

32x5mm Heavy Duty Galvanized Serrated Steel Bar Grating For Floor

Galvanized serrated bar grating introduction:


Welded steel grating is an ideal product for wet,slippery situation where corrosion resistance is vital.The mild steel gratings are hot dipped galvanized in the galvanizing bath.The galvanizing bath has got 7 tank surface cleaning process, the purity of the zinc used for hot dipped galvanizing shall be 99.95 % pure.

Galvanized serrated bar grating features:

- Material saving, slip-resistant and safe
- Lightweight, easy to install and clean-node

- Heavy loading and durable
- Nice appearance, high strength, ventilation and light can pass through

Galvanized serrated bar grating surface treatment:

Untreated, Painting or Hot Dipped Galvanizing

Galvanized serrated bar grating surface specifications​:

Bearing bar pitch Cross-bar Pitch Specification of bearing bar load(width×thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 G203/60/50 G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross-bar Pitch Specification of bearing bar load(width×thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/

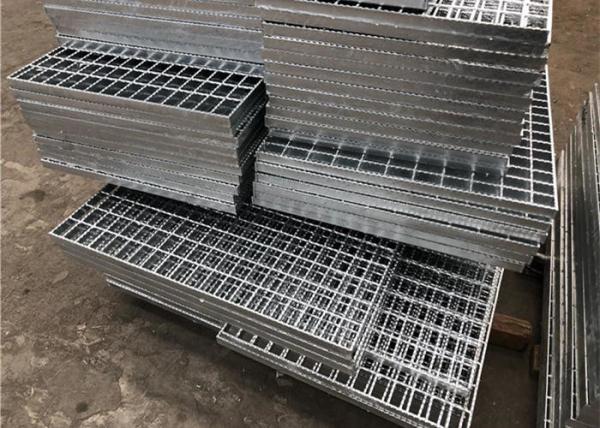

Product pictures:

HBGB 32x5mm Heavy Duty Steel Galvanized Serrated Bar Grating For Floor

Applications of galvanized serrated steel bar grating:

* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads
