HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar
HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar
HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar
HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar
Specifications
Brand Name :
HBGB
Model Number :
GB-005
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per day
Delivery Time :
10-20 days
Packaging Details :
in bundle or bulk
Product name :
reinforcing concrete welded wire mesh
Material :
steel bar
Steel bar type :
ribbed steel bar
Process of Mesh :
welded
Spacing :
100, 150, 200, 250 mm
Diameter of rod :
Ø6 ~ Ø13
Tensile strength :
460 ~ 650 Mpa
Minimum shear strength at intersection :
250 MPa
Size of wire mesh (w x L) :
width:1.2 ~ 2.4; Length 6m (up to 12m length)
Mesh Type :
Cold Rolled Ribbed Bar Mesh,hot Rolled Steel Bar Mesh Etc
Description

6 gauge ribbed steel bar concrete reinforcement welded wire mesh

Concrete Reinforcement Welded Wire Mesh Description:

  • Wire mesh is made from cold drawn high yield strength wire rods.
  • Wire mesh is produced by the automatic welding machine ensuring consistent mesh spacing.

Concrete Reinforcement Welded Wire Mesh Detailed Information:

  • Diameter of wire rods Ø6 ~ Ø13
  • Size of wire mesh (w x L) 1.2 ~ 2.4 x 6m (up to 12m length)
  • Spacing 100 ~ 250mm

Concrete Reinforcement Welded Wire Mesh Technical information:

  • Tensile strength of wire rods 460 ~ 650 Mpa
  • Minimum shear strength at intersection 250 MPa

Standards of Concrete Reinforcement Welded Wire Mesh:

British Standard BS4483:1998 - Welded mesh used for reinforcement
Australian Standard AS/NZ/4671 - Cold drawn wire rods used for reinforcement
American Standard ASTM 185:1994 - Welded mesh made from deformed bars or wire rods used for reinforcement
Vietnamese Standard TCVN 267:2002 - Welded mesh used for reinforcement

Concrete Reinforcement Welded Wire Mesh Specifications:

NO.

PRODUCT

(Sheet 2.4x6m)

 MAIN WIRE CROSS WIRE MASS PER UNIT AREA MASS PER PIECE
Size
(mm)		 Spacing
(mm)		 Size
(mm)		 Spacing
(mm)		 (kg/m2) (kg/pc)
SQUARE MESH
1 @100 4 100 4 100 1.97 28.41
2 5 100 5 100 3.08 44.40
3 6 100 6 100 4.44 63.92
4 7 100 7 100 6.04 87.00
5 8 100 8 100 7.89 113.64
6 9 100 9 100 9.99 143.83
7 10 100 10 100 12.33 177.57
8 11 100 11 100 14.92 214.85
9 12 100 12 100 17.76 255.69
10 @150 4 150 4 150 1.32 18.94
11 5 150 5 150 2.06 29.59
12 6 150 6 150 2.96 42.61
13 7 150 7 150 4.03 58.00
14 8 150 8 150 5.26 75.76
15 9 150 9 150 6.66 95.89
16 10 150 10 150 8.22 118.38
17 11 150 11 150 9.95 143.24
18 12 150 12 150 11.84 170.47
19 @200 4 200 4 200 0.99 14.20
20 5 200 5 200 1.54 22.19
21 6 200 6 200 2.22 31.97
22 7 200 7 200 3.02 43.50
23 8 200 8 200 3.95 56.82
24 9 200 9 200 4.99 71.91
25 10 200 10 200 6.17 88.78
26 11 200 11 200 7.46 107.42
27 12 200 12 200 8.88 127.84
28 @250 4 250 4 250 0.79 11.36
29 5 250 5 250 1.23 17.76
30 6 250 6 250 1.78 25.57
31 7 250 7 250 2.42 34.80
32 8 250 8 250 3.16 45.46
33 9 250 9 250 4.00 57.53
34 10 250 10 250 4.93 71.02
35 11 250 11 250 5.97 85.94
36 12 250 12 250 7.10 102.28

Advantages of concrete reinforcement welded wire mesh:

  • Shorten implementation time; thereby gaining economic advantages
  • Replace manual production with higher productivity
  • Customize in accordance with customers requests
  • Reduce losses and quality deterioration of steel materials
  • Ensure the progress of projects
  • Enhance the ease of transportation, installation and replacement

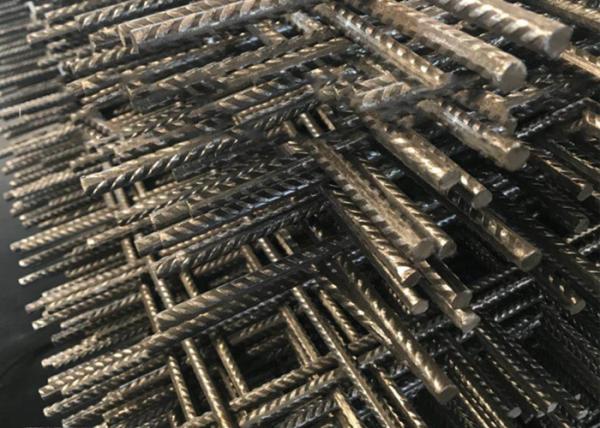

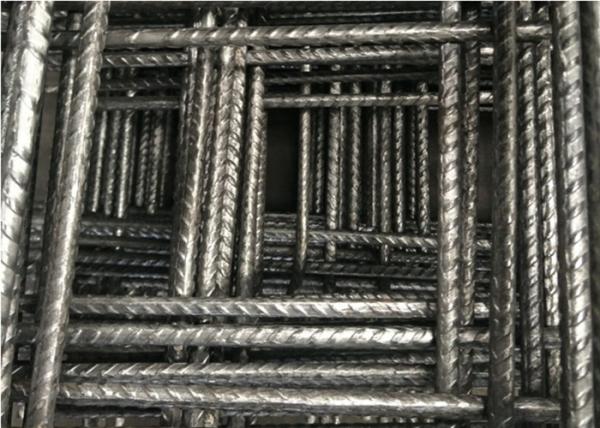

Pictures of product:

HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar

Application:

HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar
