SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking
SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking
SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking
SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking
Specifications
Brand Name :
HBGB
Model Number :
GB-005
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per day
Delivery Time :
10-20 days
Packaging Details :
in bundle or bulk
Product name :
Concrete Reinforcement Welded Wire Mesh
Material :
Q235
Process of Mesh :
welded
Mesh Type :
Cold Rolled Ribbed Bar Mesh,hot Rolled Steel Bar Mesh Etc
Pitch :
75x75mm, 50x50mm 100x100mm, 150x150mm or as your request
Wire diameter :
4-12 mm
Opening shape :
square, rectangle
Mesh dimension :
6000x2400mm
Application :
concrete panels, construction mesh
If factory :
real factory
Description

concrete reinforcement construction building foundation rebar welded wire mesh

Concrete Reinforcement Welded Wire Mesh Description:


Concrete Reinforcing Mesh also known as steel reinforcing mesh, welded wire fabric, ribbed steel bars welded mesh and so on. Be made from cold reduced Wire or cold rolled ribbed bars(CRB550) , It is in the same or different diameters of the vertical and horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.

It is used to provide tensile strength and crack control to structural concrete elements.

Concrete Reinforcement Welded Wire Mesh Characteristics:

Concrete sl 62 sl72 sl82 sl92 welded reinforcing mesh with rectangular or square mesh pattern is a kind of welded wire fabric, which can improve the bonding to concrete, minimize the concrete cracking that may occur as a result of concrete shrinkage. And the standard of sl 62 sl72 sl82 f92 welded reinforcing mesh is usually 6 m long × 2.4 m wide. With flat even surface and firm structure, it is used extensively for reinforcement of road surfaces, masonry walls, and concrete structures in building. Besides, it is also can be used as large animal enclosure, quarantine caging, gabion or various fences.

Drawing of Concrete Reinforcement Welded Wire Mesh:

SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking

Concrete Reinforcement Welded Wire Mesh Specifications:

Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)

Ref No. Std Unit

Longitudinal

Wires(mm)

 Edge wires (mm) Cross Wires(mm) Mass(Kg)
SL81(F81) Sheet 7.6 @100 7.60 @100 7.60 @100 105
SL102(F102) Sheet 9.5 @200 6.75 @100 9.50 @200 80
SL92(F92) Sheet 8.6 @200 6 @100 8.60 @200 66
SL80(F82) Sheet 7.6 @200 5.37 @100 7.60 @200 52
SL72(F72) Sheet 6.75 @200 4.77 @100 6.75 @200 41
SL62(F62) Sheet 6 @200 4.77 @100 6 @200 33
SL52(F52) Sheet 4.77 @200 4.77 @100 4.77 @200 21

Concrete Reinforcement Welded Wire Mesh Applications:

· Concrete footpaths

· Industrial and commercial ground slabs

· Precast Panel construction

· Residential slabs and footings

SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking

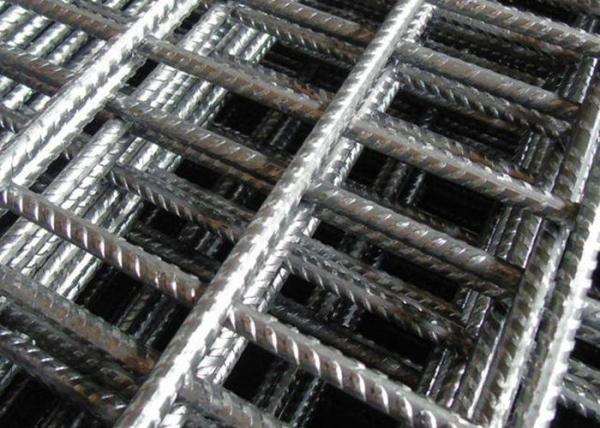

Pictures of product:

SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking

SL62 SL92 Hot Rolled Steel Rebar Mesh Panels 75x75mm Anti Cracking
