SL92 12m WWF Concrete Reinforcement Welded Wire Mesh Fabric For Building
SL92 12m WWF Concrete Reinforcement Welded Wire Mesh Fabric For Building
SL92 12m WWF Concrete Reinforcement Welded Wire Mesh Fabric For Building
SL92 12m WWF Concrete Reinforcement Welded Wire Mesh Fabric For Building
Specifications
Brand Name :
HBGB
Model Number :
GB-005
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per day
Delivery Time :
10-20 days
Packaging Details :
in bundle or bulk
Product name :
concrete reinforcing mesh
Material :
Q235
Mesh Type :
Welded wire mesh
Color :
Natural color of iron
Types :
SL62, SL72, SL82, SL92 and etc
Wire diameter :
6 -10 mm
Width :
1m, 1.5m, 2.0m, 2.4m
Length :
2m, 4m, 6m, 8m, 12m
Opening shape :
square, rectangle
Market :
Australia, America, Europe and etc
Description

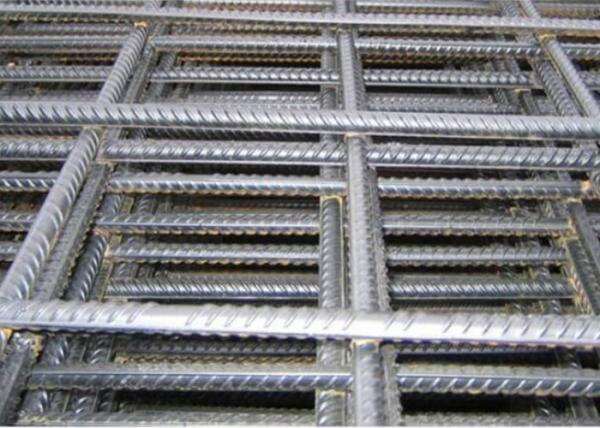

Concrete reinforcing welded wire mesh for road and building reinforcement



Concrete reinforcing welded wire mesh Description:

Welded reinforcing mesh also known as welded wire reinforcement, is a kind of mesh reinforcement. Reinforcing mesh is a high efficient, economical and flexible for concrete reinforcement, greatly save the construction time and reducing the labor force. It is widely used in road and highway construction, bridge engineering, tunnel lining, housing construction, floor, roof and walls, etc.

Concrete reinforcing welded wire mesh Specifications:

Standard reinforcing mesh sizes are 6.0m x 2.4m for the SL and RL range of products.

Reference
Standard
Main Wires
Cross Wires
Edge Wires
Mass
No
Unit
(mm)
(mm)
(mm)
(kg)
SL81
Sheet
7.6 @ 100
7.6 @100
7.6 @100
105
SL102
Sheet
9.5 @ 200
9.50 @ 200
6.75 @ 100
80
SL92
Sheet
8.6 @ 200
8.60 @ 200
6.00 @ 100
65
SL82
Sheet
7.6 @ 200
7.60 @ 200
6.00 @ 100
52
SL72
Sheet
6.75 @ 200
6.75 @ 200
4.75 @ 100
40
SL62
Sheet
6 @ 200
6.0 @ 200
4.75 @ 100
33
SL52
Sheet
4.75@ 200
4.75@ 200
4.00 @ 100
21


Reference No
Standard Unit
Main Wires
(mm)
Cross Wires
(mm)
Mass
(kg)
RL1218
Sheet
11.9 @ 100
7.60 @ 200
155
RL1118
Sheet
10.65 @ 100
7.60 @ 200
130
RL1018
Sheet
9.50 @ 100
7.60 @ 200
109
RL918
Sheet
8.55 @ 100
7.60 @ 200
93
RL818
Sheet
7.60 @ 100
7.60 @ 200
78
RL718
Sheet
6.75 @ 100
7.60 @ 200
68

Features of Concrete reinforcing welded wire mesh include:

· The welded wire fabric makes them easier to work on.
· There are different diameters of steel reinforcing mesh each suited for a particular application.
· There are different designs of steel reinforcing mesh from bent and rolls to flat sheets.
· As per BS 4482 standards and codes, the stainless steel wire used in the manufacture of the steel reinforcing mesh has a 510MPa tensile strength and 485MPa minimum proof stress.
· The steel reinforcing mesh is rigid making it possible for you to control concrete cover during construction.
· Manufacturers produce steel reinforcing mesh under SANS1024 Standard Specifications.
· The steel bars stay intact whenever immersed in concrete because they are carefully welded in mats.
· You don’t have to apply additional surface treatment to the steel reinforcing mesh before use.
· Less field labor needed when making reinforced concrete slabs using this mesh thus drastically speeding up the construction process.
· The mesh is easy to load and unload, and easy to handle at the working site.

· Properly mixed concrete is poured into the mesh and then given time to dry out. The concrete, as it continues to dry out, it grips the steel bars tightly creating a bond stress between these two materials. This bond stress is essential because it reduces bending and makes reinforced concrete slabs stronger.

Types of Concrete reinforcing welded wire mesh:

· Square opening steel reinforced mesh: This mesh has stainless wires that runs vertically and horizontally supporting each other while forming small squares.
· Rectangular steel reinforced mesh: This mesh has stainless wires that runs vertically and horizontally supporting each other while forming smaller rectangular shapes.
· Welded steel reinforced mesh for building vertical walls.
· Customized types, also known as special steel reinforced mesh.

Concrete reinforcing welded wire mesh Applications:


· Concrete footpaths
· Industrial and commercial ground slabs
· Precast Panel construction
· Residential slabs and footings
