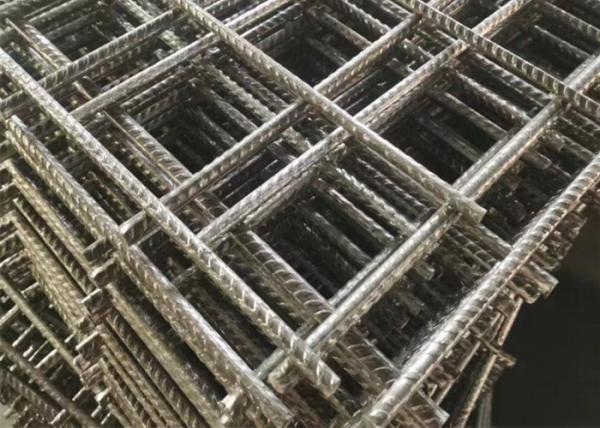

F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel
F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel
F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel
F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel
Specifications
Brand Name :
HBGB
Model Number :
GB-005
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per day
Delivery Time :
10-20 days
Packaging Details :
in bundle or bulk
Product name :
Concrete Reinforcement Welded Wire Mesh
Material :
low carbon steel wire Q 235
Grade :
500 N
Aperture :
200 x 200 mm
Wire diameter :
4-9mm
Standard :
DIN488 or AS/NZS 4671:2001
Panel size :
6000x2400mm, 5800x2200mm
Customized :
Available
Application :
Construction Wire Mesh
Certificate :
ISO9001:2008 / CE / SGS
Description

6 x 2.4 m Concrete Reinforcement 200 x 200 mm Welded Wire Mesh

Concrete Reinforcement Welded Wire Mesh Introduction:

Concrete Reinforcement Welded Wire Mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square reinforcement mesh grid pattern and is produced in flat sheets.

Reinforcing Concrete Mesh is a multi-purpose steel reinforcing mesh, which is suitable for the use of more structural building slabs and footing. It consisted of a series of high-strength wires welded together to form a square or rectangular grids fabric.

F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel

Concrete Reinforcement Welded Wire Mesh Details:

Wire diameter
6mm-26mm
Material
Low carbon steel rod
Length
According to your requires
Width
According to your requires
Usage
Road, bridge and tunnel,building
Hole shape
Rectangle,Square
Mesh opening
10*10 15*15 20*20(mm)
Features
High tension strength

Concrete Reinforcement Welded Wire Mesh Applications:

· Concrete footpaths

· Industrial and commercial ground slabs

· Precast Panel construction

· Residential slabs and footings

F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel

Concrete Reinforcement Welded Wire Mesh Specifications:

1) German standard DIN 488( Size: 2150x5000mm)

Ref No. Std Unit Longitudinal Wires(mm) Cross Wires(mm) Pitch of wire(mm) Mass(Kg) Mass(Kg/m2)
Q131 Sheet 5 5 150 @ 150 22.476 2.091
Q188 Sheet 6 6 150 @ 150 32.401 3.014
Q221 Sheet 6.5/5.0 6.5 150 @ 150 33.707 3.136
Q295 Sheet 7.5/5.5 7.5 150 @ 150 44.245 4.116
Q378 Sheet 8.5/6 8.5 150 @ 150 66.659 5.157

2) Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400m)

Ref No. Std Unit Longitudinal Wires(mm) Edge Wires(mm) Cross Wires(mm) Mass(Kg)
SL81 (F81) Sheet 7.6 @ 100 7.60 @ 100 7.60 @ 100 105
SL102 (F102) Sheet 9.5 @ 200 6.75 @ 100 9.50 @ 200 80
SL92 (F92) Sheet 8.6 @ 200 6 @ 100 8.60 @ 200 66
SL82 (F82) Sheet 7.6 @ 200 5.37 @ 100 7.60 @ 200 52
SL72 (F72) Sheet 6.75 @ 200 4.77 @ 100 6.75 @ 200 41
SL62 (F62) Sheet 6 @ 200 4.77 @ 100 6 @ 200 33
SL52 (F52) Sheet 4.77 @ 200 4.77 @ 100 4.77 @ 200

21

Pictures of product:

F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel

F52 F62 Reinforcing Concrete Metal Mesh 5x2.15m 6x2.4m Low Carbon Steel
