L6m Metal Drain Plain Steel Grating 40x5mm
L6m Metal Drain Plain Steel Grating 40x5mm
L6m Metal Drain Plain Steel Grating 40x5mm
L6m Metal Drain Plain Steel Grating 40x5mm
Specifications
Brand Name :
HBGB
Model Number :
GB-007
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per day
Delivery Time :
15-25days
Packaging Details :
bulk packing, in bundle or by pallet
Product name :
Plain Bar Grating
Material :
low carbon steel, stainless steel
Grating type :
Serrated, Plain
Grating Width :
1m max
Grating length :
6m max
Surface treatment :
hot dipped galvanized
Bearing Bar :
30x3mm, 32x5mm, 40x5mm
Twist bar :
5, 6, 8, 10 etc
If factory :
real factory
Payment :
30%TT Advance + 70% Balance
Description

Round Shape Steel Welded Galvanized Plain Bar Grating For Sewer Cover

Outdoor Bridge Walkway Metal Building drain plain bar steel grating

Plain Steel bar grating:

Steel grating is a kind of widely used grid products. They are used in various industrial fields and has the strongest resistance to surface impact.

According to the shape of the surface,they can be divided into tooth-shaped steel grating, pressure welded steel grating, I-type steel grating and composite steel grating.
According to the surface treatment,they can be divided into hot-dip galvanized steel grating, spray paint steel grating, stainless steel grating and original steel grating.

L6m Metal Drain Plain Steel Grating 40x5mm

Surface process of plain steel bar grating:

There are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

Plain bar grating specifications:

No Item Description
1 Bearing

20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3,

32x5, 40x5, 50…75x8mm, etc.
2 Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
3 cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
4 Cross bar pitch

40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’

requirement
5 Surface treatment

Hot dip galvanized, Cold dip galvanized, Painted, Powder coated,

or as customers’ requirement.
6 Flat bar type Plain, Serrated (tooth-like), I bar (I section)
7 Material standard Low carbon steel

Plain bar grating features:

Corrosion resistance, Rust resistance.
Anti-slip resistance, Good air circulation.
Good drainage performance, Easy to install and uninstall.

Usage:

widely used in petroleum chemical industry, power plants, water plants, sewage treatment plants, municipal works, sanitation engineering and other fields of the platforms, walkways, trench trestle bridge cover, covers, ladders, fence, fence, etc.

L6m Metal Drain Plain Steel Grating 40x5mm

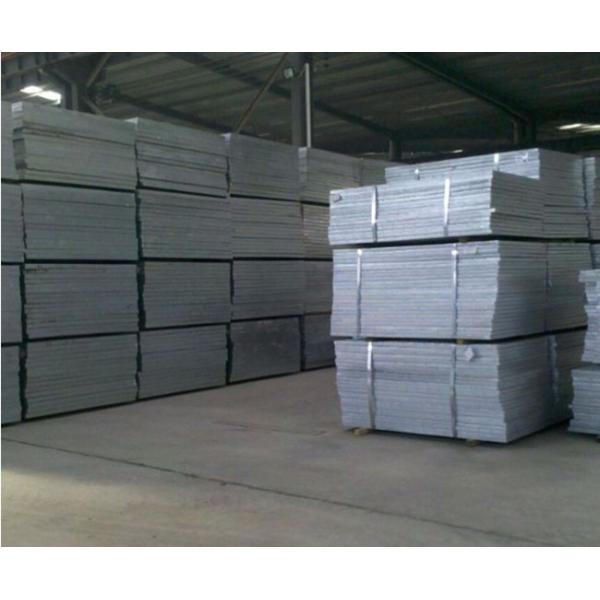

Warehouse:

L6m Metal Drain Plain Steel Grating 40x5mm
