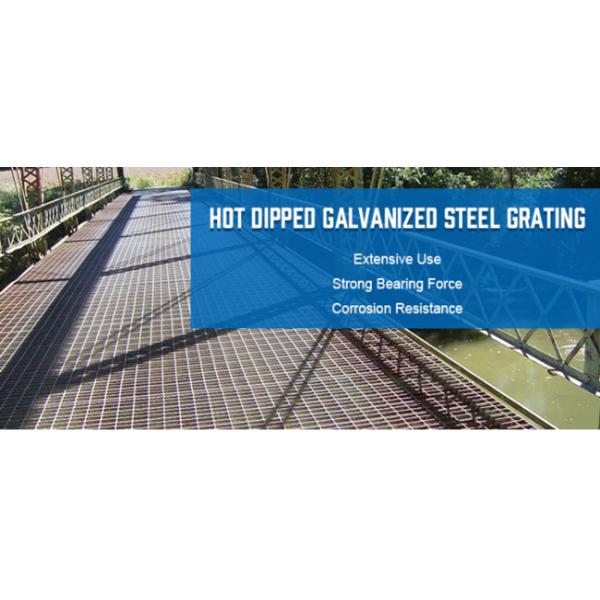

1m Press Locked Plain Bar Grating Dovetail Swage Low Carbon Steel
1m Press Locked Plain Bar Grating Dovetail Swage Low Carbon Steel
1m Press Locked Plain Bar Grating Dovetail Swage Low Carbon Steel
1m Press Locked Plain Bar Grating Dovetail Swage Low Carbon Steel
Specifications
Brand Name :
HBGB
Model Number :
GB-007
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per day
Delivery Time :
15-25days
Packaging Details :
bulk packing, in bundle or by pallet
Product name :
Plain Bar Grating
Material :
low carbon steel, stainless steel
Grating type :
Serrated, Plain
Grating size :
6m*1m, or customized
Surface treatment :
hot dipped galvanized
Bearing Bar :
25/ 30/32/ 40
Cross bar :
6/8/10mm
Cross bar pitch :
50mm, 100mm
Payment :
30%TT Advance + 70% Balance
Description

Long Life Dovetail Pressure Locked Steel Grid Plain Bar Grating

Plain Steel bar grating:

Steel Bar Grating, also known as Welded Steel Bar Grate is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel Bar Grating is available in a variety of bearing bar spacing and thicknesses depending on applications and load requirements.

1m Press Locked Plain Bar Grating Dovetail Swage Low Carbon Steel

Surface process of plain steel bar grating:

There are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

Plain bar grating specifications:

Common Specification Of Steel Grating
Material Standard
ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,
Mild steel & Low carbon steel, etc
Bearing Bar
(width*thickness)
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment
untreated(black), hot-dipped galvanized ,powder coated,
electroplate, painting or as per customers’ requirement.
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Plain bar grating features:

Corrosion resistance, Rust resistance.
Anti-slip resistance, Good air circulation.
Good drainage performance, Easy to install and uninstall.

Usage:

widely used in petroleum chemical industry, power plants, water plants, sewage treatment plants, municipal works, sanitation engineering and other fields of the platforms, walkways, trench trestle bridge cover, covers, ladders, fence, fence, etc.

1m Press Locked Plain Bar Grating Dovetail Swage Low Carbon Steel

Warehouse:

1m Press Locked Plain Bar Grating Dovetail Swage Low Carbon Steel
