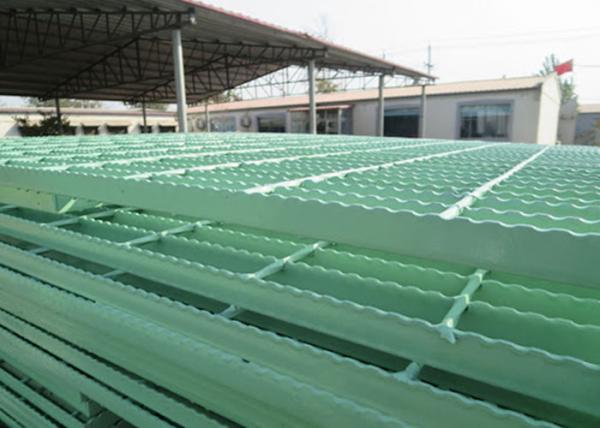

Powder Spraying Galvanized Serrated Carbon Steel Bar Grating Decorative 40x5
Powder Spraying Galvanized Serrated Carbon Steel Bar Grating Decorative 40x5
Powder Spraying Galvanized Serrated Carbon Steel Bar Grating Decorative 40x5
Powder Spraying Galvanized Serrated Carbon Steel Bar Grating Decorative 40x5
Specifications
Brand Name :
HBGB
Model Number :
GB-006
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 pcs per day
Delivery Time :
15-25 days
Packaging Details :
Steel Pallet or customized
Product namee :
Serrated Steel Grating
Raw material :
Carbon Steel Q 195, 235
Flat bar type :
Plain, Serrated
Finishing :
hot dipped galvanized or powder coated
Flat bar pitch :
30mm / 40mm / 60mm
Cross bar :
5x5, 6x6, 8x8 mm (twisted bar or round bar)
Cross bar pitch :
40,50,60, 65,76,100,101.6,120,130mm
Bearing bar :
20x5,25x3,25x4,25x5,30x3,30x4,30x5,32x3,32x5, 40x5,etc
Bearing bar pitch :
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm
Application :
metal building material,fences,ditch cover,steel ladder,stair tread
Description

Decorative Beautiful Powder Spraying Galvanized Serrated Bar Grating

Serrated Steel Grating introduction:

Steel grating is a kind of widely used grid products. They are used in various industrial fields and has the strongest resistance to surface impact.

According to the shape of the surface,they can be divided into tooth-shaped steel grating, pressure welded steel grating, I-type steel grating and composite steel grating.
According to the surface treatment,they can be divided into hot-dip galvanized steel grating, spray paint steel grating, stainless steel grating and original steel grating.

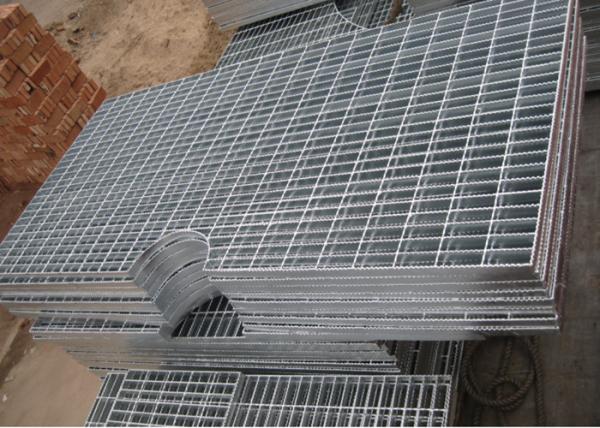

Powder Spraying Galvanized Serrated Carbon Steel Bar Grating Decorative 40x5

Galvanized serrated bar steel grating details:

Bearing bar ( widthx thickness)
25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10 etc
I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
earing bar pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60 etc
Twisted cross bar pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm
Surface treatment
black annealed wire, hot dipped galvanized, powered coated, painting etc
Greating style
Plain, Smooth, Serrated, teeth, I bar

Galvanized serrated bar steel grating size:

1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of

the flat bar;

4. Finish: Hot dipped galvanized.

Galvanized serrated bar grating surface specifications​:

flat bar/mm cross bar flat bar pitch cross bar pitch
20*5 6*6mm, 8*8mm

30mm

40mm

60mm

100mm

50mm
25*5
32*5
40*5
50*5
65*5
75*6
100*8
100*10

Applications of galvanized serrated steel bar grating:

* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads

Powder Spraying Galvanized Serrated Carbon Steel Bar Grating Decorative 40x5

Packing:

Powder Spraying Galvanized Serrated Carbon Steel Bar Grating Decorative 40x5
