1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages
1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages
1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages
1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Raw Material :
Pvc coated or galvanized or galfan coated iron wire
Color :
green, grey, silver
Weaving type :
triple Twist
Net wire diameter :
2.0-4.0mm
Hole shape :
hexagonal shape
Opening :
60 x 80 mm; 80 x 100 mm;100 x 120 mm;
Box size :
1.0 x 1.0 x 1.0 m; 2.0 x 1.0 x 1.0 m and etc
Usage :
Flood Control Retaining Wall
Feature :
Anti-corrosion, flood protective
Description

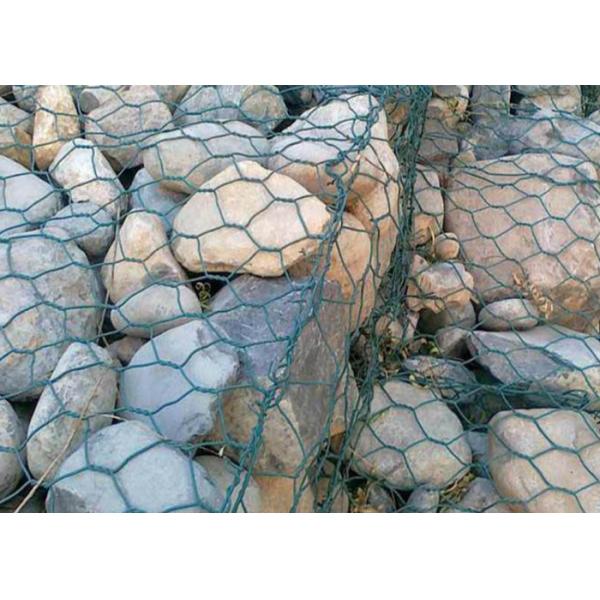

Hot dipped galvanized or pvc coated gabion mesh basket

Gabion Mesh Basket Introduction:

Stone Gabion Mesh are made of high quality steel wire, which has 2 types of fabrication: double or triple twist fabric. The fabric structures are flexible and variable. Compared with welded gabion baskets, woven gabion baskets have durability for a long service life.

Gabion Mesh Basket Raw material:

(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.
(3) coated galvanized steel wire: low carbon steel wire, pvc coated.

(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm, ect

(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested

1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages


Gabion Mesh Basket Usage:

Control and guide rivers and floods;
Flood discharge dam and diversion dam;
Rockfall protection;
Preventing water adnd soil erosion;
Bridge protection;
Soild Soil structure;
Costal Denfece;
Port Works;
Retaining Wall;
Road Protection.

Gabion Mesh Basket Specifications:

Opening Wire Diameter(Metal Wire) (mm) Wire Diameter (PVC Coate)/ Inner/Outside(mm) Strands
(mm)
60X80 φ2.0-2.8 φ2.0/3.0-2.5/3.5 3
80X100 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
80X120 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
100X120 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
100X150 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
120X150 φ2.0-4.0 φ2.0/3.0-3.0/4.0 3

1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages

Packing and transportion:

1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages

Applications:

1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages
