Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating
Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating
Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating
Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion Mesh Basket
Material :
PVC coated iron wire
Color :
customized
Weaving type :
triple Twist
Wire diameter :
2 - 4 mm
Opening :
hexagonal
Mesh size :
60 x 80 mm; 80 x 100 mm;100 x 120 mm;
Basket size :
1.0 x 1.0 x 1.0 m; 2.0 x 1.0 x 1.0 m and etc
Usage :
Flood Control Retaining Wall
Feature :
Easily Assembled
Description

Triple twist pvc coated woven type gabion mesh basket stone cages

Gabion Mesh Basket Description:

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection
Gabion Basket Surface Treatment: Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating

Gabion mesh basket specifications:

gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m

Gabion Mesh Basket Parameter:

Gabion Cage: 2mx 1mx1m,6mx 12mx0.3m(usual format)
Wire Diameter Range: 2.0mm - 4.0mm
Support Customization: PE or PVC coated
Surface Treatment: Hot dip galvanized general zinc, high zinc, 5% AL galvanized, 10% AL galvanized


Gabion Mesh Basket Usage:

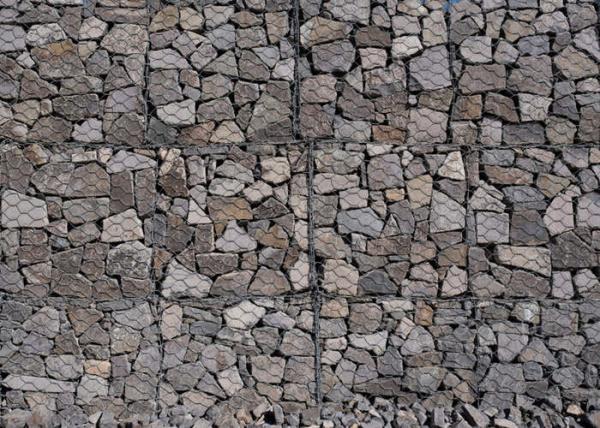

Retaining wall structures; Prevention of current scour and erosion control; Bridge protection; Hydraulic structures, dams and culverts; Embankment protection; Rockfall prevention and soil erosion protection.

Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating

Process of production:

Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating

Application:

Triple Twist Stone Filled Woven Wire Gabion Baskets 2x1x1m 245g/M2 Zinc Coating
