1 X 1 X 1 M Galvanized Gabion Box Welded Stone Rock Baskets For Retaining Wall
1 X 1 X 1 M Galvanized Gabion Box Welded Stone Rock Baskets For Retaining Wall
1 X 1 X 1 M Galvanized Gabion Box Welded Stone Rock Baskets For Retaining Wall
1 X 1 X 1 M Galvanized Gabion Box Welded Stone Rock Baskets For Retaining Wall
Specifications
Brand Name :
HBGB
Model Number :
GB-003
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
on pallet
Product name :
Galvanized welded Gabion box
Material :
GI wire, Zn+Al wire
Netting wire :
3mm-6 mm
Spiral wire :
4.0 mm
Mesh size :
50*50 mm, 50*100 mm etc
Processing method :
welding, cutting
Production Capacity: :
10, 000m2/ day
Feature :
Easily Assembled, Easy transport, Beautiful
Factory or trader :
factory
Factory location :
Hebei, China
Description

1 X 1 X 1 M Welded Stone Rock Galvanized Gabion Box Baskets For Stone Retaining Wall

Galvanized Welded Gabion Box ​Descripion:

The welding gabion boxJs made Of high quality low carbon steel wire through automatic, precise and accurate mechanical equipment,and is surface passivated and plasticized by electrical, hot dip galvanizing, spray coating. dip molding or Galfan deal with.
Welded Gabion basket is assembled by welded mesh panels, some mesh panels are connected by crossing spirals or C rings. Its beauty apperance and easily installation successfully get people's attraction.

Structure of Welded galvanized gabion box:

Each gabion is constructed of rugged high tensile wire which is coated with a thick corrosion-resistant layer of zinc. The wire is also available with a tough, durable PVC coating. The use of high quality materials results in a longer, more reliable gabion life. Welded Wire Gabions are supplied from stock in a complete range of sizes. Non-typical sizes to fit your unique site conditions are also available upon request.The welded mesh gabions is made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.

Specifications of Galvanized Gabion Box:

Material
Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter
3 mm-6 mm
Aperture
50*50 mm, 50*100 mm etc
Gabion Box Size
100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish
Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
Normal Box Size(cm)
Diaphragms
Capacity (m3)
Mesh Size(mm)
100x30x30
None
0.09
50×50 or 100×50
100x50x30
None
0.15
100x100x50
None
0.5
100x100x100
None
1
150x100x50
1
0.75
150x100x100
1
1.5
200x100x50
1
1
200x100x100
1
2
Other sizes can be customized.

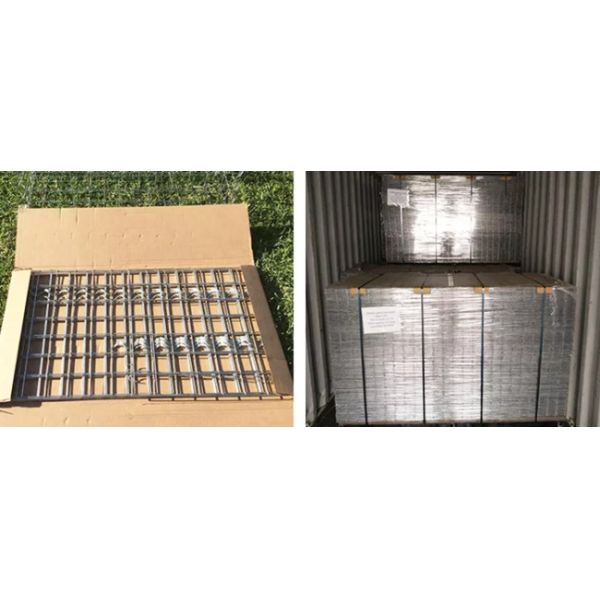

Packing and Shipping:

1 X 1 X 1 M Galvanized Gabion Box Welded Stone Rock Baskets For Retaining Wall

Applications:

1.)Flood discharge and lead flow
2.)Rock fall defending
3.)Preventing the water and soil lost
4.)Protecting the bridge
5.)Landscape gabion wall
6.)Seashore recovery project
7.)Seaport project
8.)Gabion retaining wall
9.)Defending the road

1 X 1 X 1 M Galvanized Gabion Box Welded Stone Rock Baskets For Retaining Wall
