60*80mm Hexagonal Hole Gabion Wire Mesh Boxes Galvanized For River Embankment Mattress
60*80mm Hexagonal Hole Gabion Wire Mesh Boxes Galvanized For River Embankment Mattress
60*80mm Hexagonal Hole Gabion Wire Mesh Boxes Galvanized For River Embankment Mattress
60*80mm Hexagonal Hole Gabion Wire Mesh Boxes Galvanized For River Embankment Mattress
Specifications
Brand Name :
HBGB
Model Number :
GB-003
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion mattress, gabion box
Material :
GI wire, Zn+Al wire, pvc coated wire
Netting wire :
standard 2.7 mm
Mesh size :
60mm x80mm , 80mm x100mm, 100x120mm, 120x150mm
Width of box :
1m
Height of box :
0.3-1m
Length of box :
1-6m
Number of diagram :
Yes
Sample :
for free
Usage :
Slope support, foundation pit support, mountain rock face
Description

60*80 Mm Hexagonal Hole Galvanized Gabion Boxes For River Embankment Mattress

Galvanized Gabion Box Description:

Gabion mesh is made of hexagonal wire mesh. Gabion box is made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal, with the quality of high corrosion resistance, high tensile strength. The gabion boxes are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.

Galvanized Gabion Box Detail:

Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color

Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3

zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2

opening: 6*8cm,8x10cm,10*12cm

mesh wire :2.2mm,2.7mm,3.0mm

Specifications of Galvanized Gabion Box:

Surface Treatment
Galvanized
PVC coated
Galvanized
PVC coated
Galvanized
PVC coated
Mesh opening
60mmx80mm
80mmx100mm
100mmx120mm
Mesh wire diameter
2.2mm
3.2mm
2.7mm
3.7mm
2.7mm
3.7mm
Selvedge wire diameter
2.7mm
3.7mm
3.4mm
4.4mm
3.4mm
4.4mm
Lacing wire diameter
2.2mm
3.2mm
2.2mm
3.2mm
2.2mm
3.2mm
Gabion box size
2m x 1m x 0.5m/1m
3m x 1m x 0.5m/1m
4m x 1m x 0.5m/1m

Galvanized gabion box performance:

Stranded mesh parallel tensile strength 3500 lbs/ft
Stranded mesh vertical tensile strength 1800 lbs/ft
Side wire tensile strength

1400 lbs/ft
Tensile strength between mesh surfaces

1400 lbs/ft
Coating strength 6000 lbs/ft

Features:

1) corrosion- resistant, rust-resistant.
2) oxidation –resistant, good tensile strength.
3) uniform mesh size, flat and even mesh surface, weave tightly.
4) galvanized /pvc coated for longer life, low costs
5) easy to handle and cut.

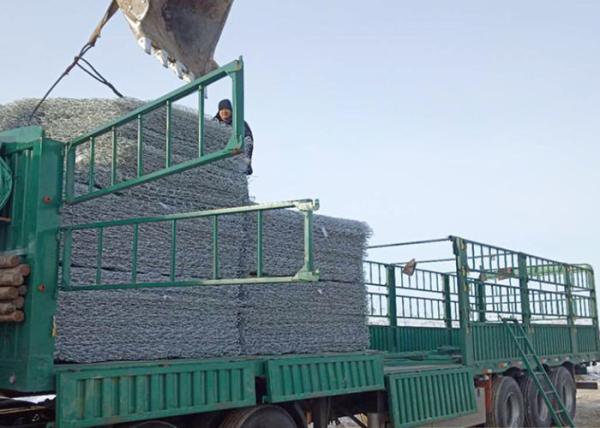

Shipping:

60*80mm Hexagonal Hole Gabion Wire Mesh Boxes Galvanized For River Embankment Mattress

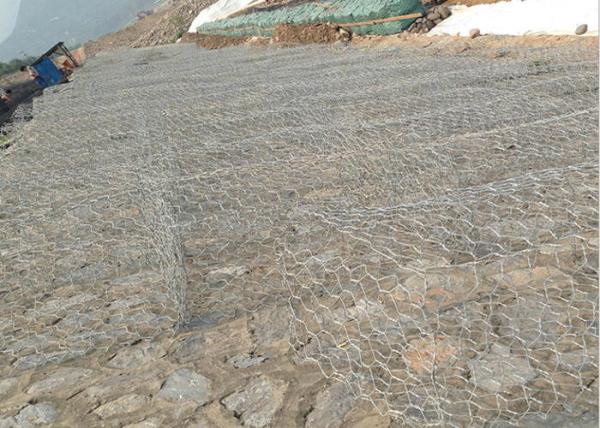

Applications:

1 Improve the stability of the river channel slope and prevent the raging river from scouring the river bank;

2 providing a predetermined value of the river bank roughness coefficient;
3 Compared with the river bank where the cement is poured, the gabion net pad can protect the ecology.

60*80mm Hexagonal Hole Gabion Wire Mesh Boxes Galvanized For River Embankment Mattress
