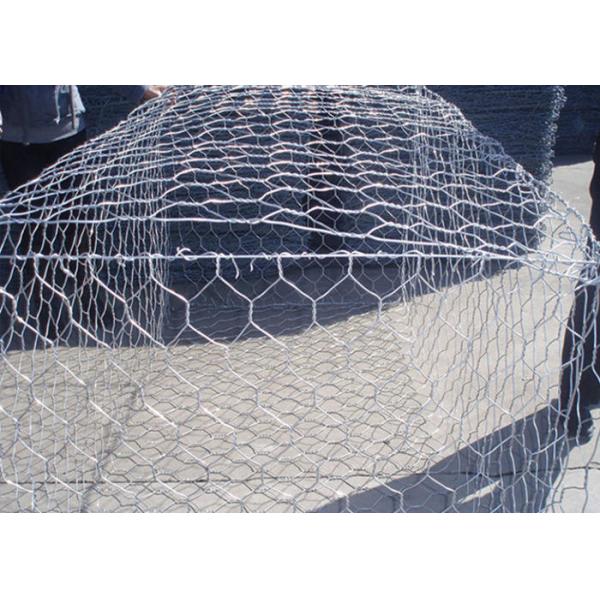

2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall
2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall
2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall
2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall
Specifications
Brand Name :
HBGB
Model Number :
GB-003
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Galvanized Gabion basket
Material :
low carbon steel wire
Surface treatment :
Zn + Al coated , hot dipped galvanized
Zinc coating :
heavy zinc coating, customized
processing method :
hexagonal weaving
Wire diameter :
2.7mm
Selvage wire :
3.0-3.4 mm
Tie wire :
2.0- 2.2 mm
Aperture :
8 x 10 cm( popular), 6 x 8 cm
Application :
stone retaining wall
Description

2x1x1m stone rock galvanized weaving gabion box for stone retaining wall


Galvanized Gabion Box ​ Introduction:


Gabion basket is also called gabion box, gabion wall, gabion cage, hexagonal gabion, gabion retaining wall and so on. It is a large cage made by hexagonal wire netting, it can be filled by stones, the wire material is high quality galvanized carbon steel, it is strong enough to protect road, river wall or forward operating bases.

Gabion length could be adjusted by add diaphragms each meter.

Galvanized Gabion Box Application:


Slope support, foundation pit support, mountain rock face hanging net spray, slope planting (greening), railway expressway isolation barrier, it can also be used as stone cages, stone mats for rivers, dams and seawalls Anti-scour protection and stoning cages for reservoirs and river closures.

Galvanized Gabion Box Specifications:

Specification
Opening (mm)
Wire Diameter (Metal Wire) (mm)
Wire Diameter (PVC Coate)/ lnner/Outside(mm)
Strands
60X80
f2.0-2.8
f2.0/3.0-2.5/3.5
3
80X100
f2.0-3.2
f2.0/3.0-2.8/3.8
3
80X120
f2.0-3.2
f2.0/3.0-2.8/3.8
3
100X120
f2.0-3.4
f2.0/3.0-2.8/3.8
3
100X150
f2.0-3.4
f2.0/3.0-2.8/3.8
3
120X150
f2.0-4.0
f2.0/3.0-3.0/4.0
3


Length(M)
Width(M)
Height(M)
Diaphragm(Unit)
Volume(M3)
Tolerance
2
1
0.3
1
0.6
±5%
3
1
0.3
2
0.9
4
1
0.3
3
1.2
2
1
0.5
1
1
3
1
0.5
2
1.5
4
1
0.5
3
2
1
1
1
0
1
1.5
1
1
0
1.5
2
1
1
1
2
3
1
1
2
3
4
1
1
3
4

Galvanized Gabion Box Feature:

(1) Just put the stone in the cage and seal it.
(2) The construction is simple and does not require special technology.
(3) It has strong ability to withstand natural damage and corrosion and weather resistance.
(4) It can withstand a wide range of deformations without still collapsing.
(5) The silt between the cracks of the cage stone is conducive to plant production and can be integrated with the surrounding natural environment.
(6) It has good permeability and can prevent damage caused by hydrostatic force. Conducive to the stability of hillsides and beaches
(7) Saving transportation costs. It can be folded for transport and assembled on the job site.
(8) Good flexibility: no structural joints, the overall structure is malleable.
(9) Corrosion resistance: galvanized materials are not afraid of sea water.



2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall

Packing pictures:
2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall
2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall

Shipping:

2x1x1m Rock Weaving Galvanized Gabion Box For Stone Retaining Wall
