16 Gauge Black Vinyl Coated Poultry Hex Netting Mesh 1.5 3 Ft X 150 Ft
16 Gauge Black Vinyl Coated Poultry Hex Netting Mesh 1.5 3 Ft X 150 Ft
16 Gauge Black Vinyl Coated Poultry Hex Netting Mesh 1.5 3 Ft X 150 Ft
16 Gauge Black Vinyl Coated Poultry Hex Netting Mesh 1.5 3 Ft X 150 Ft
Specifications
Brand Name :
HBGB
Model Number :
GB-004
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50 rolls
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 square meter per day
Delivery Time :
15-25 days
Packaging Details :
Waterproof paper or Shrink Wrapped , Carton
Product name :
poultry netting, poultry fence, poultry wire mesh
Material :
q195 wire
Surface treatment :
electro galvanized, hot dipped galvanized or pvc coated
Mesh type :
woven mesh
Type of twist :
normal twist, reverse twist(more stable)
Wire gauge :
0.37-1.20 regular; 0.50-1.30 reverse
Aperture :
5/8", 3/4", 1", 1/2", 2", 1/4", 3/8", 1/8"
Width of mesh :
24", 36", 48", 60", 72"
Length of roll :
10, 20, 30, 0m
Sample :
for free
Description

16 Gauge Black Vinyl Coated Hex / Poultry Netting Mesh 1.5" 3 Ft X 150 Ft

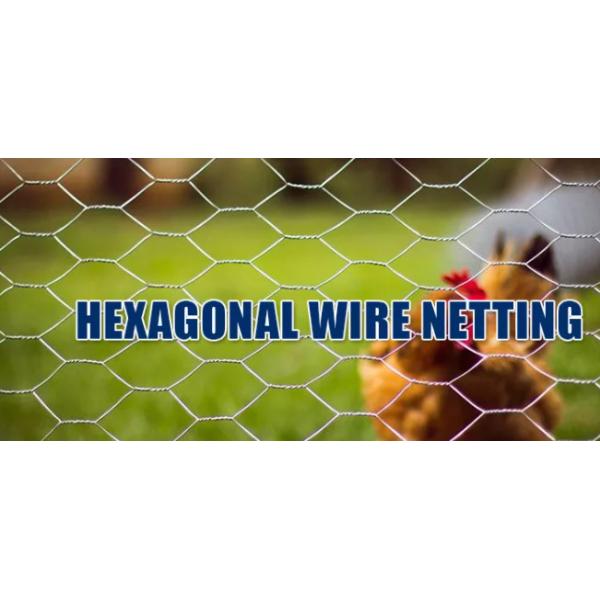

Poultry Wire Netting Introduction:

Poultry wire netting is also known by the name of hexagonal wire mesh / chicken mesh / rabbit mesh. Hexagonal wire mesh with it's good corrosion resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone
cage/gabion box, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing
industries.

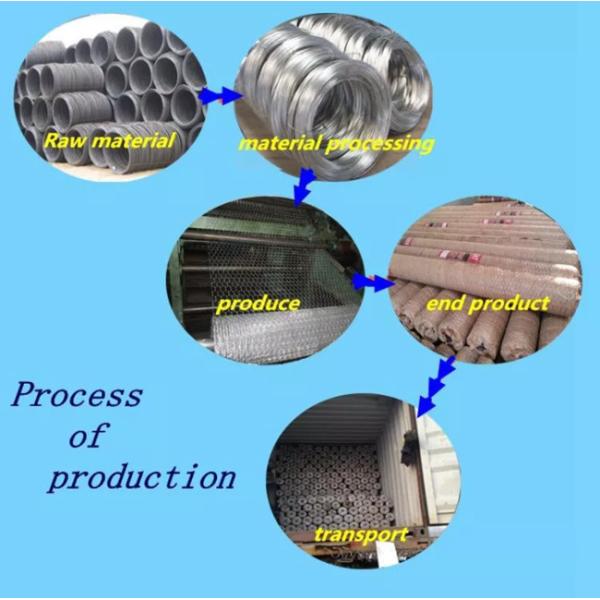

Process of poultry wire netting:

-raw material

-material processing

-weaving

-packing

-loading and transporting

16 Gauge Black Vinyl Coated Poultry Hex Netting Mesh 1.5

Poultry Wire Netting Specifications:

stainless steel /Galvanized hexagonal wire netting
mesh Min. Gal.v. Width Wire Gauge (Diameter)
Inch mm Tolerance(mm)
3/8" 10mm ±1.0 0.7mm - 145 2' - 1M 27, 26, 25, 24, 23
1/2" 13mm ±1.5 0.7mm - 95 2' - 2M 25, 24, 23, 22, 21
5/8" 16mm ±2.0 0.7mm - 70 2' - 2M 27, 26, 25, 24, 23, 22
3/4" 20mm ±3.0 0.7mm - 55 2' - 2M 25, 24, 23, 22, 21, 20, 19
1" 25mm ±3.0 0.9mm - 55 1' - 2M 25, 24, 23, 22, 21, 20, 19, 18
1-1/4" 31mm ±4.0 0.9mm - 40 1' - 2M 23, 22, 21, 20, 19, 18
1-1/2" 40mm ±5.0 1.0mm - 45 1' - 2M 23, 22, 21, 20, 19, 18
2" 50mm ±6.0 1.2mm - 40 1' - 2M 23, 22, 21, 20, 19, 18
2-1/2" 65mm ±7.0 1.0mm - 30 1' - 2M 21, 20, 19, 18
3" 75mm ±8.0 1.4mm - 30 2' - 2M 20, 19, 18, 17
4" 100mm ±8.0 1.6mm - 30 2' - 2M 19, 18, 17, 16

Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting
Mesh Wire Gauge (MM) Width
Inch MM - -
1/2" 13mm 0.6mm - 1.0mm 2' - 2M
3/4" 19mm 0.6mm - 1.0mm 2' - 2M
1" 25mm 0.7mm - 1.3mm 1' - 2M
1-1/4" 30mm 0.85mm - 1.3mm 1' - 2M
1-1/2" 40mm 0.85mm - 1.4mm 1' - 2M
2" 50mm 1.0mm - 1.4mm 1' - 2M
We also offer other specifications you need

Poultry netting weaving and characteristic:

Hexagonal wire mesh is formed by twisting two adjacent wires at least four times, forming a strong honeycomb mesh structure. So, it has a high strength and durability. Even if a place is cut off, it will not lead to the entire chicken mesh structure destroyed. When using for plastering, plaster layer and the reinforcing metal layer have different thermal expansion coefficient.

Poultry Wire Netting Usage:

Galvanized Hexagonal Wire Netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

16 Gauge Black Vinyl Coated Poultry Hex Netting Mesh 1.5

Packing & Transportation pictures:

16 Gauge Black Vinyl Coated Poultry Hex Netting Mesh 1.5
