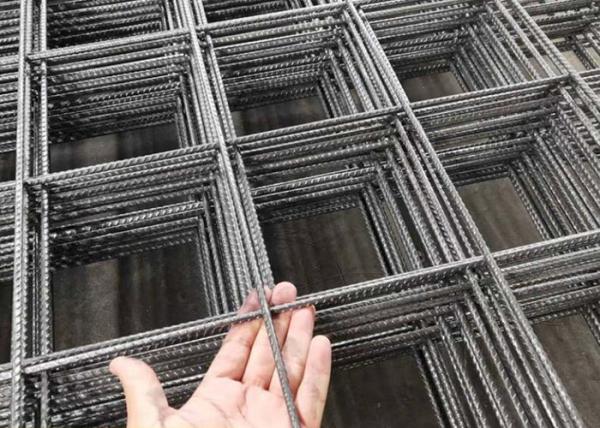

7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar
7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar
7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar
7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar
Specifications
Brand Name :
HBGB
Model Number :
GB-005
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per day
Delivery Time :
10-20 days
Packaging Details :
in bundle or bulk
Product name :
steel reinforcing mesh
Raw material :
Cold Rolled Ribbed Bar Mesh,hot Rolled Steel Bar Mesh Etc
Mesh type :
welded wire mesh
Surface treatment :
without treatment
Pitch :
100x100mm, 150x150mm, 200x 200mm
Wire diameter :
4-12 mm
If factory :
real factory
Usage :
Road, bridge and tunnel,building
Type code :
SL52-102
Market :
Australian/New Zealand
Description

7 Mm CRB550 Round Steel Bar Concrete Reinforcement Welded Wire Mesh

Introduction of Concrete Reinforcement Welded Wire Mesh:


Concrete Reinforcing Mesh also known as steel reinforcing mesh, welded wire fabric, ribbed steel bars welded mesh and so on. Be made from cold reduced Wire or cold rolled ribbed bars(CRB550) , It is in the same or different diameters of the vertical and horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.

It is used to provide tensile strength and crack control to structural concrete elements.

Main Market and Standard of Concrete Reinforcement Welded Wire Mesh:

Europe - ENV 10 080Great Britain - BS 4449 / Grade 460B
Germany - DIN 488 / Bst500
France - NF A 35-016 & 015 / FeE 500-3
Netherlands - NEN 6008 / FEB 500 HWL
Spain - UNE 36-068 EX 200 / B 500 SD
Ukraine - DSTU 3760 / A400 A500 A800 A1000
And all other major standards on request

Australian/New Zealand Standard -AS/NZS 4671:2001

Drawing of Concrete Reinforcement Welded Wire Mesh:

7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar

Concrete Reinforcement Welded Wire Mesh Specifications:

Concrete Reinforcing Mesh

SQUARE MESH

6m X 2.4m Sheets

 Code

Longitudinal Wires:

Number x Size (mm) @ Pitch (mm)

Cross Wires:

Number x Size (mm) @ Pitch (mm)

Approx Mass

Kg/Sheet
SL52

10 x 4.77mm @ 200mm

+4 x 4.00mm @ 100mm

 30 x 4.77mm @ 200mm 21kg
SL62

10 x 6.00mm @ 200mm

+4 x 4.77mm @ 100mm

 30 x 6.00mm @ 200mm 33kg
SL72

10 x 6.75mm @ 200mm

+4 x 4.77mm @ 100mm

 30 x 6.75mm @ 200mm 41kg
SL82

10 x 7.60mm @ 200mm

+4 x 5.37mm @ 100mm

 30 x 7.60mm @ 200mm 52kg
SL92

10 x 8.60mm @ 200mm

+4 x 6.00mm @ 100mm

 30 x 8.60mm @ 200mm 66kg
SL102

10 x 9.50mm @ 200mm

+4 x 6.75mm @ 100mm

 30 x 9.50mm @ 200mm 80kg
SL81 25 x 7.60mm @ 100mm 60 x 7.60mm @ 100mm 105kg

TRENCH MESH

6m Sheets

 Code

Longitudinal Wires:

Number x Size (mm) @ Pitch (mm)

Cross Wires:

Number x Size (mm) @ Pitch (mm)

Approx Mass

Kg/Sheet
L8TM3 3 x 7.60mm @ 100mm 4.77mm @ 300mm 7kg
L8TM4 4 x 7.60mm @ 100mm 4.77mm @ 300mm 9kg
L8TM5 5 x 7.60mm @ 100mm 4.77mm @ 300mm 11kg
L11TM3 3 x 10.65mm @ 100mm 4.77mm @ 300mm 13kg
L11TM4 4 x 10.65mm @ 100mm 4.77mm @ 300mm 18kg
L11TM5 5 x 10.65mm @ 100mm 4.77mm @ 300mm 22kg
L12TM3 3 x 11.90mm @ 100mm 4.77mm @ 300mm 16kg
L12TM4 4 x 11.90mm @ 100mm 4.77mm @ 300mm 22KG
L12TM5 5 x 11.90mm @ 100mm 4.77mm @ 300mm 27KG

RECTANGULAR MESH

6m x 2.4m Sheets

 Code

Longitudinal Wires:

Number x Size (mm) @ Pitch (mm)

Cross Wires:

Number x Size (mm) @ Pitch (mm)

Approx Mass

Kg/Sheet
RL718 25 x 6.75mm @ 100mm 30 x 7.00mm @ 200mm 68kg
RL818 25 x 7.60mm @ 100mm 30 x 7.00mm @ 200mm 79kg
RL918 25 x 8.55mm @ 100mm 30 x 7.00mm @ 200mm 93kg
RL1018 25 x 9.50mm @ 100mm 30 x 7.00mm @ 200mm 109kg
RL1118 25 x 10.65mm @ 100mm 30 x 7.00mm @ 200mm 131kg
RL1218 25 x 11.90mm @ 100mm 30 x 7.00mm @ 200mm 157

Concrete Reinforcement Welded Wire Mesh Applications:

Retaining and shear walls
Beams and columns
Concrete paving overlays
Precast concrete elements
Suspended floor slabs
Swimming pool and gunite construction

7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar

Production process:

7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar

7 Mm Concrete Reinforcement Welded Wire Mesh Crb550 Round Steel Bar
