0.3m High Green Pvc Coated Gabion Mattress For Roadway Protection
0.3m High Green Pvc Coated Gabion Mattress For Roadway Protection
0.3m High Green Pvc Coated Gabion Mattress For Roadway Protection
0.3m High Green Pvc Coated Gabion Mattress For Roadway Protection
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion mattress
Raw Material :
Green Pvc coated iron wire
Net wire diameter :
2.0-4.0mm
mattress height :
0.3 m
Length :
2-6m
Hole shape :
hexagonal shape
Mesh size :
60 x 80 mm; 80 x 100 mm;100 x 120 mm;120 x 150 mm
Usage :
gabion mattress for fiver band and slope protection
Factory location :
Hebei, China
Description

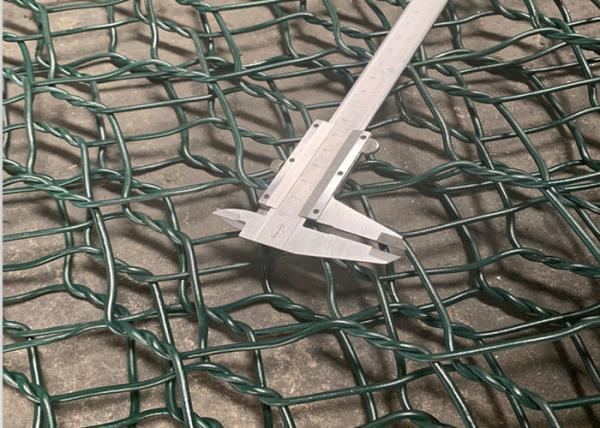

0.3m High PVC Coated Green Gabion Mattress For Roadway Protection

Green Gabion Mattress Introduction:

Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.
Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection. This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from unvegetated to vegetation establishment up to vegetation maturation.

Gabion Mattress Characteristics:

Gabion mat strength lies in their double twisted hexagonal mesh of steel wire which is reinforced by selvedges of
heavier wire running along the edges.
The base section is divided into compartments to restrict the movement of stone and strengthen the structure.
The lid is supplied as a separate panel.
The wire will not unravel even when cut.
Assembly is easy, requiring no specialized labor and nearby rock is used for fill.
Free drainage and 30-35% voids allow vegetation to grow.

Gabion Specifications:

Specifications of gabion mattress
Length
(m)		 Width
(m)		 Height
(m)
2 1 0.15
0.17
0.23
0.3
3 1
3 2
4 1
4 2
5 1
5 2
6 1
6 2

Hot dip galvanized gabion box
Size(m) Mesh size(cm)

Diameter(mm)

selvage wire/mesh wire/tie wire

2x1x1

2x1x0.5

8x10

10x12

3.4/2.7/2.2

3.9/3.0/2.2

3.9/2.7/2.2

3x1x1

3x1x0.5
4x1x1

PVC coated gabion box
Size(m) Mesh size(cm)

Before PVC Diameter(mm)

selvage wire/mesh wire/tie wire

After PVC Diameter(mm)

selvage wire/main wire/tie wire

2x1x1

2x1x0.5

8x10

10x12

 3.4/2.7/2.2 4.4/3.7/3.2

0.3m High Green Pvc Coated Gabion Mattress For Roadway Protection

Packing and transportion:

0.3m High Green Pvc Coated Gabion Mattress For Roadway Protection

Applications:

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area

0.3m High Green Pvc Coated Gabion Mattress For Roadway Protection
