6 X 8cm Hexagon Hole Stone Gabion Mats Silver Color Galfan Wire With Diaphragms
6 X 8cm Hexagon Hole Stone Gabion Mats Silver Color Galfan Wire With Diaphragms
6 X 8cm Hexagon Hole Stone Gabion Mats Silver Color Galfan Wire With Diaphragms
6 X 8cm Hexagon Hole Stone Gabion Mats Silver Color Galfan Wire With Diaphragms
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion mats
Raw Material :
hot dipped galvanized wire or galfan wire
Color :
silver
Net wire diameter :
2.0-4.0mm
height :
0.15, 0.17, 0.23, 0.3 m( most popular)
Length :
6m max
Number of diaphragms :
1,2,3,4,5
Opening :
60 x 80 mm; 80 x 100 mm;100 x 120 mm;
Usage :
gabion mattress for fiver band and slope protection
Sample :
provide
Description

Silver Color 6 X 8 Cm Hexagonal Hole Stone Gabion Mats With Diaphragms

Gabion Introduction:

The Gabion mats is a structure made of hexagonal double twisted wire mesh. Gabion mats are filled with stones at the project

site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control.

The steel wire used to manufacture the mattress is heavily zinc-coated soft temper steel.In order to reinforce the structure,

all mesh panel edges are selvedge with a wire having a greater diameter. es are divided into uniformly partitioned

cells by internal diaphragms .

Gabion Raw material:

1. Materials: electro galvanized, hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).

2. Zinc coating: 10-300g/m2.

3. Tensile strength between 380N/mm2 -- 500N/mm2.

4. Elongation≥ 12%.

5. Mesh hole size: 60*80m, 80*100mm,80*120mm,100*120mm,120*150mm.

The advantage of the gabion mats :

Gabion mat strength lies in their double twisted hexagonal mesh of steel wire which is reinforced by selvedges of heavier
wire running along the edges.
The base section is divided into compartments to restrict the movement of stone and strengthen the structure.
The lid is supplied as a separate panel.
The wire will not unravel even when cut.
Assembly is easy, requiring no specialized labor and nearby rock is used for fill.
Free drainage and 30-35% voids allow vegetation to grow.

Gabion Specifications:

The specification of the gabion mats,other is also available as your request

Mesh

sizes

Numbers of

diaphragm

 Approximate dimensions and volumes Tolerance

Colour

code

 Wire diameter(mm)
Length(m) Width(m) Depth(m) Capacity(m³)

60*80

80*100

80*120

100*120

 2 3.00 2.00 0.17 0.90

Length

±5%

Width

±5%

Depth

±5%

Blue

Red

Yellow

Green

White

Black

Heavily galvanized or galfan

coated wire 2.00-3.00

Or PVC coated on heavily

galvanized or galfan coated

wire 2.0/3.0, 2.2/3.2, 2.4/3.4,

2.7/3.7, 2.0/4.0
2 3.00 2.00 0.23 1.35
2 3.00 2.00 0.30 1.80
2 3.00 2.00 0.50 3.00
3 4.00 2.00 0.17 1.20
3 4.00 2.00 1.23 1.80
3 4.00 2.00 0.30 2.40
3 4.00 2.00 0.50 4.00
4 5.00 2.00 0.17 1.50
4 5.00 2.00 0.23 2.25
4 5.00 2.00 0.30 3.00

6 X 8cm Hexagon Hole Stone Gabion Mats Silver Color Galfan Wire With Diaphragms

Packing:

6 X 8cm Hexagon Hole Stone Gabion Mats Silver Color Galfan Wire With Diaphragms

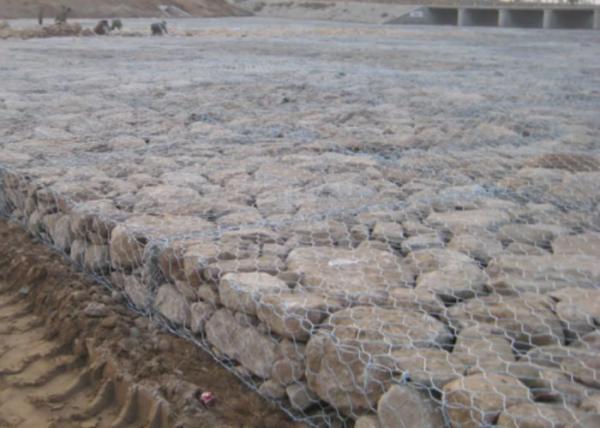

Applications:

6 X 8cm Hexagon Hole Stone Gabion Mats Silver Color Galfan Wire With Diaphragms
