5mm Dia 75 X 75mm Hole Galvanized Welded Gabion Box 4m Length Hot Dipped
5mm Dia 75 X 75mm Hole Galvanized Welded Gabion Box 4m Length Hot Dipped
5mm Dia 75 X 75mm Hole Galvanized Welded Gabion Box 4m Length Hot Dipped
5mm Dia 75 X 75mm Hole Galvanized Welded Gabion Box 4m Length Hot Dipped
Specifications
Brand Name :
HBGB
Model Number :
GB-001
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50sets
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per day
Delivery Time :
10-20 days
Packaging Details :
bulk or in bundle, or on pallet
Product name :
welded gabion mesh for Anti-Explosion Wall
Material :
iron wire Q195
Surface treatment :
heavy zinc coated
Zinc coating :
270g/m2 or more
Hole shape :
rectangle or square
wire diameter :
5 mm
aperture :
75x75mm
length :
1M,2M,3M,4M
Application :
Flood Control Retaining Wall
Features :
Strong Corrosion Resisting
Description

5 Mm Dia 75 X 75mm Hole 4m Length Hot Dipped Galvanized Welded Gabion Mesh

welded gabion mesh introduction:

Gabions are modular building blocks formed of welded wire mesh and filled on site with rock, stone or crushed concrete. They are filled on the premises, often with locally available material and are an effective and relatively inexpensive capital cost. Because they are flexible and porous they can absorb some wave and wind energy, consequently reducing the erosion problems associated with impermeable sea defence such as concrete seawalls.

welded gabion mesh size:

Manufacture Stone Galvanized Gabion Welded Fence Mesh Box For Wall

Nominal Box sizes (m) Mesh size (mm) No. of diaphragms (no.) Capacity per box (m3)
1.0x1.0x0.5

50x50

75x75

50x100

100x100

 0 0.50
1.0x1.0x1.0 0 1.00
1.5x1.0x0.5 0 0.75
1.5x1.0x1.0 0 1.50
2.0x1.0x0.5 1 1.00
2.0x1.0x1.0 1 2.00
3.0x1.0x0.5 2 1.50
3.0x1.0x1.0 2 3.00
4.0x1.0x0.5 3 2.00
4.0x1.0x1.0 3 4.00

welded gabion mesh advantages:

1.a modular solution for simple installation and low environmental impact;
2.thanks to the porosity, they do not hinder the movement of water and provide good drainage;
3.creates extremely flexible reinforcements that resist pressure and twisting;
4.can be easily and effectively integrated with greenery, compatible with natural vegetation and thus offering an even stronger geotechnical functionality over time by means of radical drainage and reinforcement.

Welded gabion mesh high performance (galvanizng after weldeding):

As a result we virtually eliminate destructive holes in the zinc coating that are created during welding. In addition, our galvanizing is the most pure - 99% pure zinc - Which you can be assured will provide your gabions with the utmost in corrosion protection.

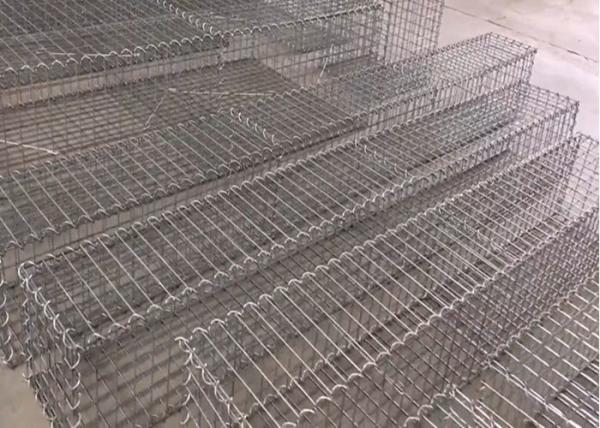

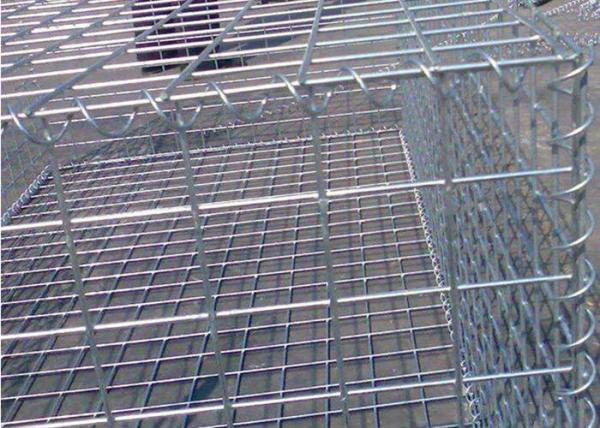

welded gabion mesh pictures:

5mm Dia 75 X 75mm Hole Galvanized Welded Gabion Box 4m Length Hot Dipped

Appilcations:

5mm Dia 75 X 75mm Hole Galvanized Welded Gabion Box 4m Length Hot Dipped

Packing and shipping:

by carton or not, then on pallet

5mm Dia 75 X 75mm Hole Galvanized Welded Gabion Box 4m Length Hot Dipped
