8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195
8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195
8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195
8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195
Specifications
Brand Name :
HBGB
Model Number :
Q195
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50 PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion box retaining wall
Optional Type :
galvanized, pvc coated,galfan wire
Reinforced type :
customized
Wire diameter :
popular 2.7mm (2.0-4.0mm)
Hole shape :
hexagonal
Hole size :
8 x 10 cm (standard)
Usage :
Flood Control Retaining Wall
Feature :
Corrosion Resistance
Factory or trader :
factory
Description

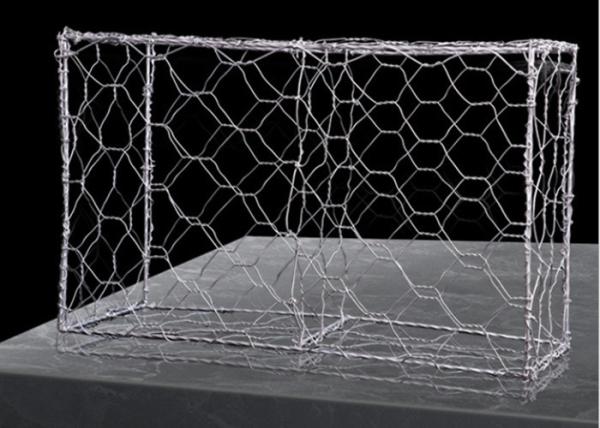

8X10CM Hole Galvanized Anti Corrosive Stone Filled Gabion Mesh Basket

Gabion Mesh Basket Profile:

Product Name: Gabion Basket

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection
Gabion Basket Surface Treatment: Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Gabion Mesh Basket Optional Types:

1: galvanized type

2: PVC coated type

3: Zinc Aluminum/ Alloy type

4: Reinforced gabion type

8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195

Gabion Mesh Basket Specifications:

Mesh Size

Galvanized Gabion( Dia.mm)

PVC Gabion (Inside Dia/Outside Dia.mm)

Max Wide Cut

60x80mm

Φ2.0-2.8

Φ2.0/3.0-2.8/3.8

4300

80x100mm

Φ2.2-3.2

Φ2.2/3.2-3.0/4.0

4300

80x120mm

Φ2.2-3.2

Φ2.2/3.2-3.0/4.0

4300

100x120mm

Φ2.4-3.5

Φ2.4/3.4-3.2/4.2

4300

100x150mm

Φ2.4-3.5

Φ2.4/3.4-3.2/4.2

4300

120x150mm

Φ2.7-4.0

Φ2.7/3.7-3.5/4.5

4300

Normal box size

(m)

Mesh size

(mm)

No. of diaphragms

(no.)

Capacity per box

(m3)

1.0x1.0x0.5

50x50

75x75

50x100

100x100

0

0.50

1.0x1.0x1.0

0

1.00

1.5x1.0x0.5

0

0.75

1.5x1.0x1.0

0

1.50

2.0x1.0x0.5

1

1.00

2.0x1.0x1.0

1

2.00

3.0x1.0x0.5

2

1.50

3.0x1.0x1.0

2

3.00

4.0x1.0x0.5

3

2.00

4.0x1.0x1.0

3

4.00

Woven type Gabion mesh basket:

8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195

Packing & loading pictures:

8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195

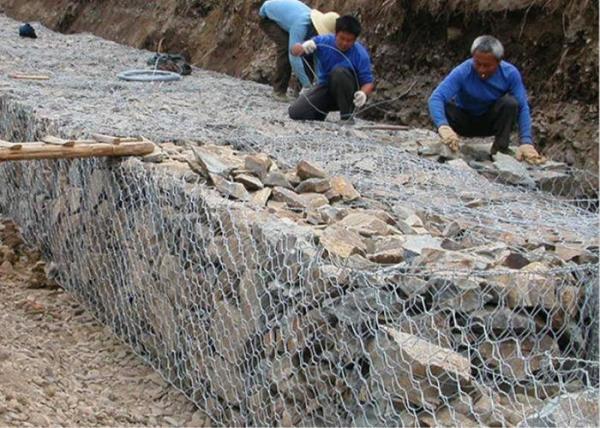

Application:

Retaining wall structures;

Prevention of current scour and erosion control;

Bridge protection;

Hydraulic structures, dams and culverts;

Embankment protection;

Rockfall prevention and soil erosion protection.

8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195
