Stone Cages Wall Welded Mesh Gabion 4mm Wire Gauge 5x5 Cm Hole
Stone Cages Wall Welded Mesh Gabion 4mm Wire Gauge 5x5 Cm Hole
Stone Cages Wall Welded Mesh Gabion 4mm Wire Gauge 5x5 Cm Hole
Stone Cages Wall Welded Mesh Gabion 4mm Wire Gauge 5x5 Cm Hole
Specifications
Brand Name :
HBGB
Model Number :
GB-001
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50sets
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per day
Delivery Time :
10-20 days
Packaging Details :
bulk or in bundle, or on pallet
Product name :
welded wire mesh gabion wall
Material :
q195 iron wire
Mesh type :
welded wire mesh
Net wire gauge :
3.5mm,4mm,4.5mm
Spiral wire diameter :
standard 4mm
aperture :
50x50mm, 50x100mm, 100x100mm, 75x 75mm
width :
0.5M, 1M, 2M
length :
1M,2M,3M,4M
Application :
Gabions, Fence, protective mesh., Retaining wall, Shore protection
Height :
0.5M, 1M, 2M
Description

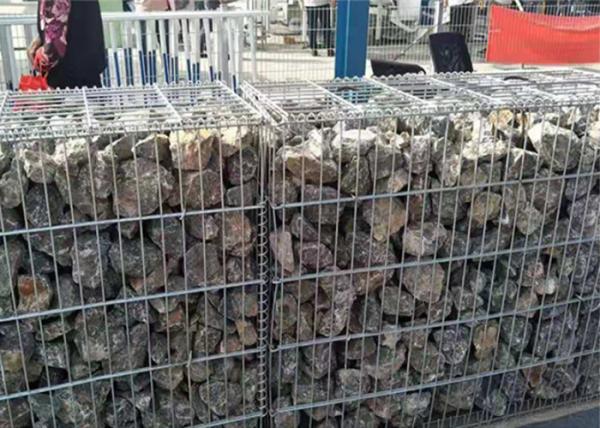

4mm Wire Gauge 5x5 Cm Hole Stone Cages Wall Welded Mesh Gabion

welded gabion mesh introduction:

Welded Gabion are manufactured by cold drawn steel wire and strictly conform to BS1052:1986 for tensile strength. It is then electrically welded together and Hot Dip Galvanised or Alu-Zinc coated to BS443/EN10244-2, ensuring a longer life. The meshes can then be organic polymer coated to safeguard against corrosion and other weathering effects, especially when the are to be used in salty and highly polluted environments. Our Alu-Zinc* mesh is coated using the Galfan process.

Stone Cages Wall Welded Mesh Gabion 4mm Wire Gauge 5x5 Cm Hole

welded gabion mesh installation method:

Welded gabion basket is composed of welded mesh panels and spring steel lacing wire.

Stone Cages Wall Welded Mesh Gabion 4mm Wire Gauge 5x5 Cm Hole

welded gabion mesh specifications:

Length m Width m Height m Wire diameter mm Mesh Aperture mm
1.0 1.0 0.5 or 1.0 2.7- 4.5mm

50*100

100*100

50*75

75*75
1.5 1.0 0.5 or 1.0
2.0 1.0 0.5 or 1.0
3.0 1.0 0.5 or 1.0
4.0 1.0 0.5 or 1.0
5.0 1.0 0.5 or 1.0

welded gabion mesh features:

Economic. Just fill the stone into the gabions and seal it. Simple installation. No special technology needed; Weather proof under natural destroys corrosion resistant; No collapse even under big scope of deforming; Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment; Good permeation can prevent the damage by hydrostatic; Less transport freight. It can be folded together for transport and further installation.

welded gabion mesh usages:

Welded wire gabion has a wide usage, it is widely used in industry, construction, transportation, mining, sport field, grassland and breeding as fence, decoration, machine guards and so on. Good quality. competitive price. efficient service and about thirty years experiences. These advantages have enable us to be one of the most reliable suppliers of wire mesh in Anping County. And we have established regular business relationship with many customers.

Stone Cages Wall Welded Mesh Gabion 4mm Wire Gauge 5x5 Cm Hole
